СКУ: LV525442

CVS250N MA220 3P3D DISJONCTEUR

  • Brand
    Schneider Electric
  • Rated fault current
    0.03
  • Delay adjustable
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    200
  • Rated control supply voltage Us at AC 60HZ
    200
  • Max. power on-delay time
    300
  • Max. rated operation voltage Ue
    440

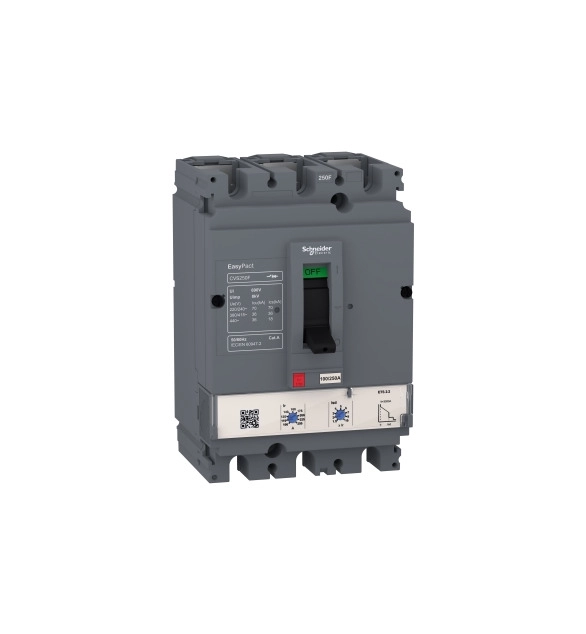

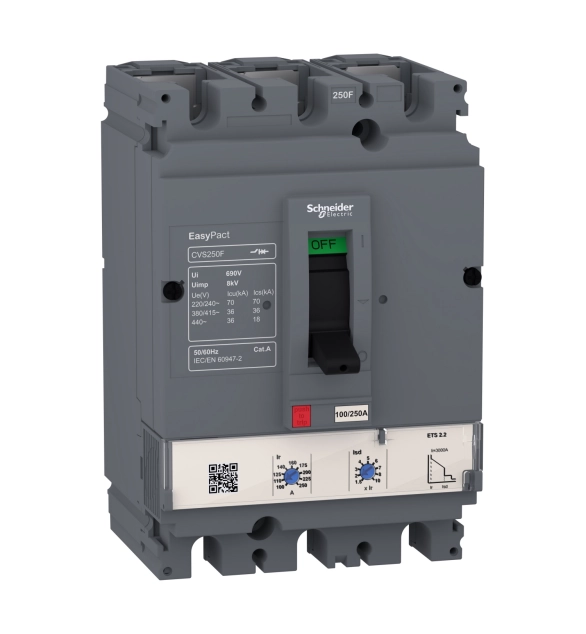

This device is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a ETS 2.2 electric trip unit. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250F is compliant with international standards (IEC 60947, EN 60947, CCC, CB).
