СКУ: LV525426

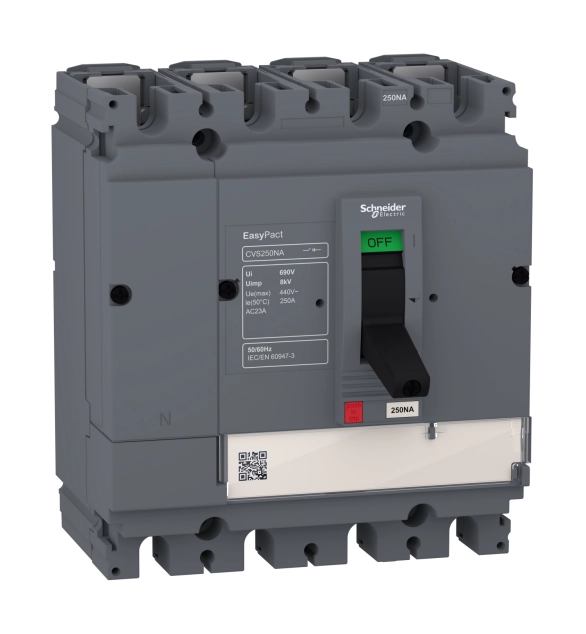

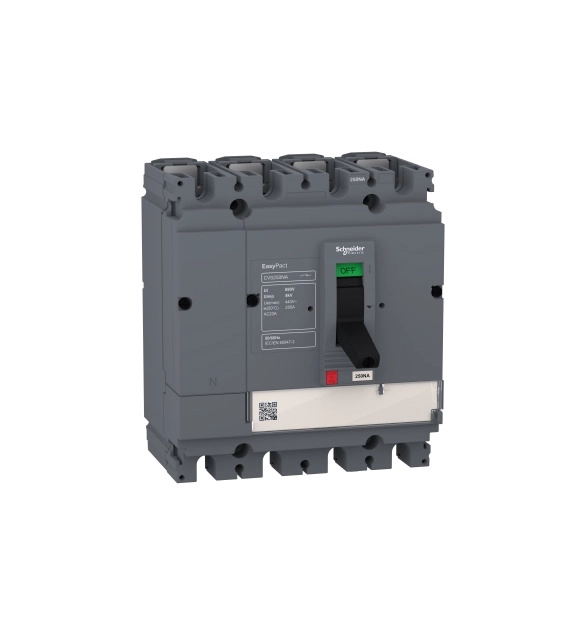

Товаров прекъсвач CVS250NA 250A 4P SWITCH-DISCONNECTOR
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Rated voltage
415
-
Rated permanent current Iu
250
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Complete device with protection unit
TRUE
-
Adjustment range short-term delayed short-circuit release
0.02
-
With integrated under voltage release
TRUE
This is a Vigi add-on module for EasyPact CVS 250 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 10 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
