СКУ: NSYS3D8625

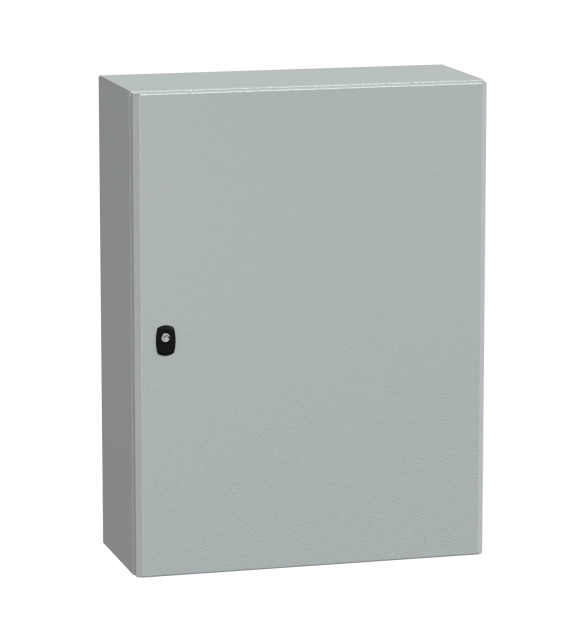

Табло S3D 800х600х250 без мп
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Width
800
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Height
800
-
Depth
250
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50
PanelSeT SM is a multi-purpose low-carbon steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1600mm, 600mm and 400mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, one plain door, one cable gland plate with one entry and four mounting plate brackets. The door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The door and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It is certified by UL, DNV and BV standards
