СКУ: METSEPM2KDGTLIO22
Цифров модул 2-IO за PM2X30
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Digital outputs configurable
TRUE
-
Type of output voltage
EV000461
-
Short-circuit protection, outputs available
FALSE
-
Type of voltage (input voltage)
EV000509
-
Redundancy
FALSE
-
Type of electric connection
EV000414
-
Type of digital output
EV001529
-
Digital inputs configurable
TRUE
-
Height
53
-
Number of digital outputs
2
-
Number of digital inputs
2
-
Time delay at signal exchange
20
-
Output current
0.02
-
Permitted voltage at output
40
-
Permitted voltage at input
36
-
Width
90.5
-
Depth
14.67

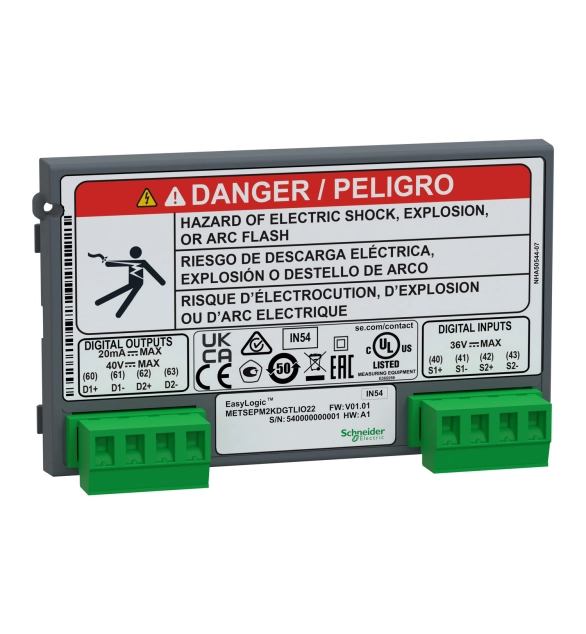

Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional digital inputs and configurable outputs. This digital module provides 2 digital status inputs that support 30VDC. Plus 2 configurable pulse outputs to provide energy or parameters values. The pulse support loads up to 20mA at 40VDC. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
