СКУ: TM5SDM8DTS

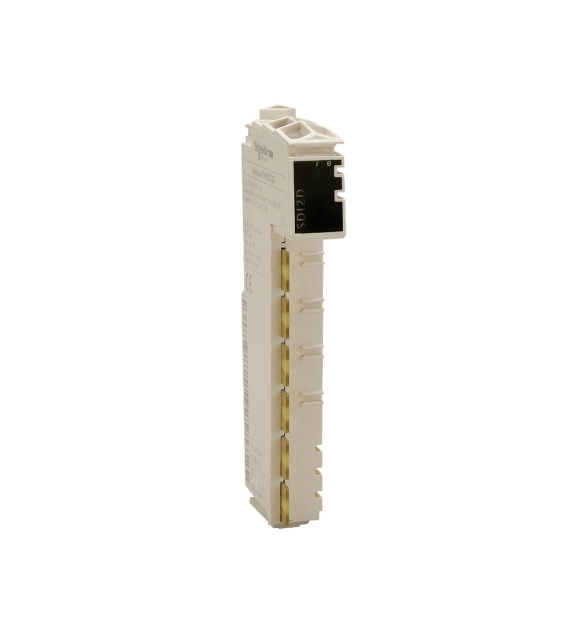

Цифров I/O модул, Modicon TM5, Цифров вход/изход 4DI/4DO 24 V dc, Time stamp, 1 кабел
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Type of electric connection
EV000154
-
Digital inputs configurable
FALSE
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
Type of digital output
EV000154
-
Type of output voltage
EV000461
-
Short-circuit protection, outputs available
FALSE
-
Digital outputs configurable
FALSE
-
Width
12.5
-
Height
99
-
Depth
75
-
Number of digital outputs
4
-
Number of digital inputs
4
-
Type of voltage (input voltage)
EV000461
-
Time delay at signal exchange
0.1
-
Permitted voltage at output
24
-
Permitted voltage at input
24
-
Input current at signal 1
1.3
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides ' discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 2mA at 5V DCbus, 62.5mA at 24V DC input/output, a maximum power dissipation of 1.51W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 1500V AC for 1min. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.022kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Sercos bus interface module. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
