СКУ: SSM1A112P7

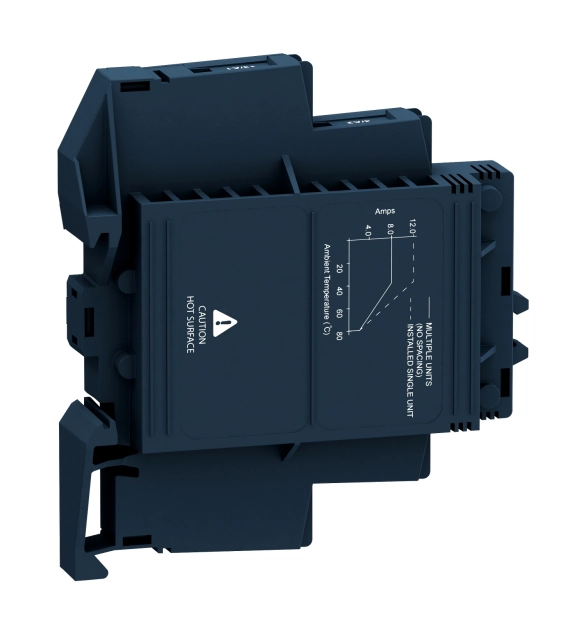

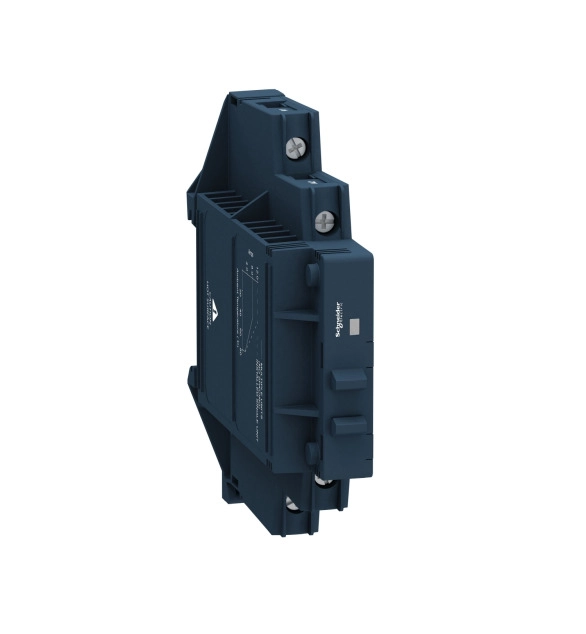

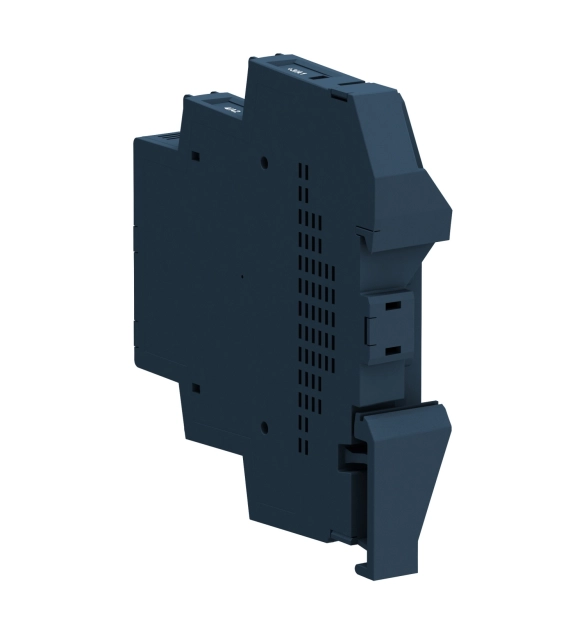

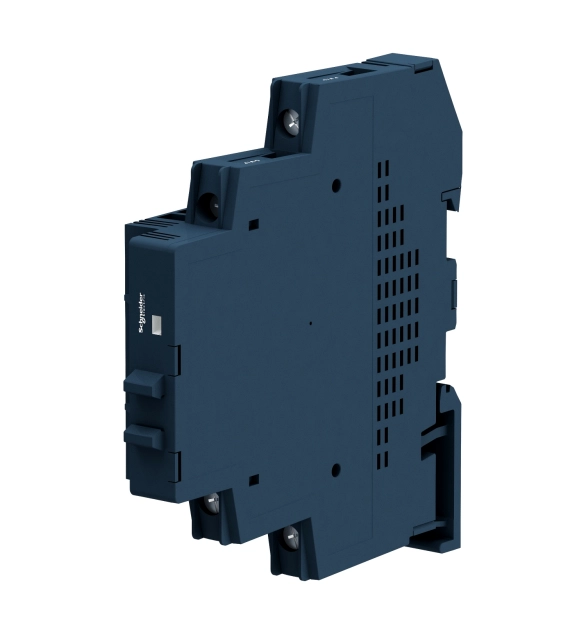

Реле за монтаж на DIN шина - 200-265 V AC, 24-280 V AC ,12A
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Modular version
TRUE
-
Operating voltage
48
-
Rated operation current Ie at AC-53a
12
-
Rated operation current Ie at AC-51
12
-
Rated operation current Ie at AC-53b
12
-
Rated control supply voltage Us at DC
4
-
Rated operation current Ie at AC-1
12
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-3
12
This product is part of Smart Relay Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This discrete I/O extension module features 14 I/Os and 120 with ladder programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 8 resistive discrete inputs with voltage of 12V DC and 6 relay outputs with voltage ranges from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.22kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
