честотен регулатор - 18kW- 400V - 3 phases - ATV340 Ethernet | Spark & Co
  • 3D
|

СКУ: ATV340D18N4E

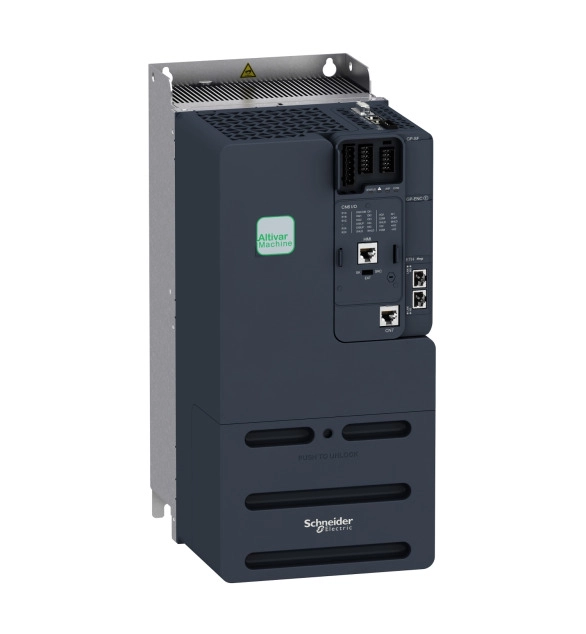

честотен регулатор - 18kW- 400V - 3 phases - ATV340 Ethernet

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Supporting protocol for EtherNet/IP
    TRUE
  • Supporting protocol for TCP/IP
    TRUE
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces other
    1
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
    1
  • Number of analogue inputs
    2
  • Number of analogue outputs
    1
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-232
  • With control element
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Width
    180
  • Number of digital outputs
    2
  • Number of HW-interfaces industrial Ethernet
    2
  • Type of converter
    EV009484
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Application in domestic- and commercial area permitted
    FALSE
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • With PC connection
    TRUE
  • Mains voltage
    380
  • 4-quadrant operation possible
    TRUE
  • Max. output voltage
    480
  • Max. output at quadratic load at rated output voltage
    18.5
  • Max. output at linear load at rated output voltage
    18.5
  • Height
    385
  • Max. output frequency
    599
  • Depth
    249
  • Number of digital inputs
    5
  • Nominal output current I2N
    42.4

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 110kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 440Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
