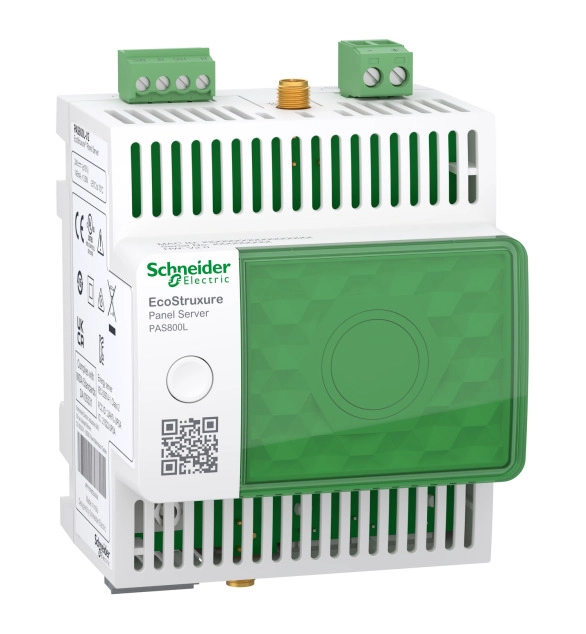

SCHNEIDER ELECTRIC EcoStruxure Panel Server, advanced datalogger, energy server, 24VDC

EcoStruxure Panel Server is a gateway, providing connection of wired or wireless smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third parties. Three years data-logger with user friendly web-pages offering energy dashboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission on your laptop, or mobile, that will offer commissioning reports and advanced features. Product dimensions are as follows: width 72 millimeters, depth 70,2 millimeters and height 93 millimeters. 24VDC Power Supply 3.5W max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Two connectors for Wi-Fi external antenna and wireless devices external antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Energy Hub, Asset Advisor and Resource Advisor.
