Автоматичен прекъсвач NSX250R 200kA AC 3P 160A 6.2E | Spark & Co
  • 3D
|

СКУ: C25R36E160

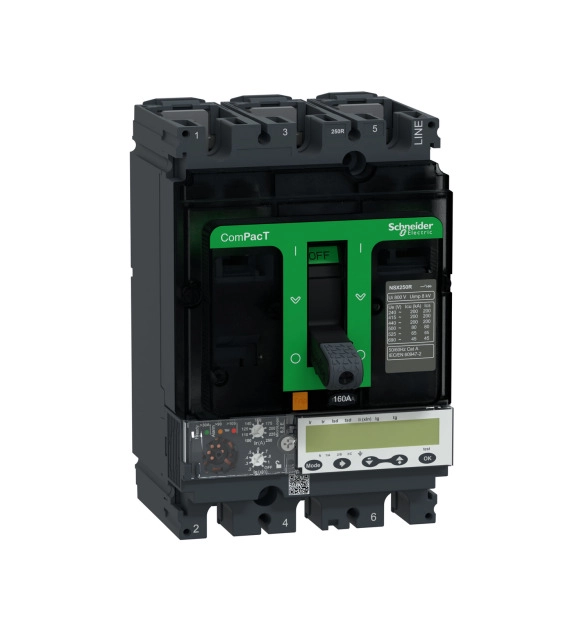

Автоматичен прекъсвач NSX250R 200kA AC 3P 160A 6.2E

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    160
  • Type of control element
    EV000421
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • DIN rail (top hat rail) mounting optional
    TRUE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    200
  • Complete device with protection unit
    TRUE
  • Overload release current setting
    63
  • Adjustment range short-term delayed short-circuit release
    94.5
  • Adjustment range undelayed short-circuit release
    2400

This ComPacT NSX250R is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 150A rating electronic MicroLogic 6.2 E-M trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.2 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. MicroLogic 6.2 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250R is part of Schneider Electric EcoStruxure Power architecture.
