СКУ: LV510307

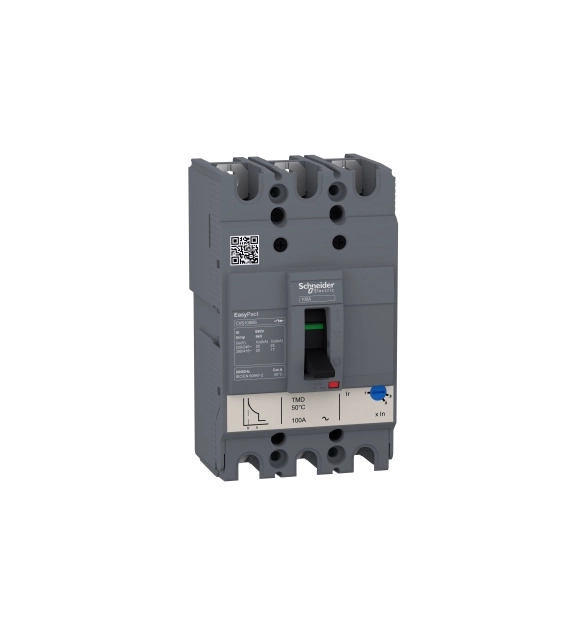

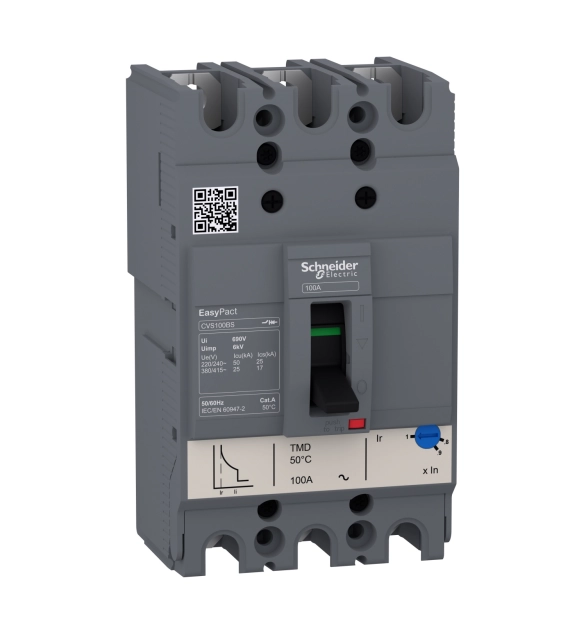

Авт. прекъсвач CVS100B TM100D 3P3D; EasyPact CVS circuit breaker LV510307

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    100
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    25
  • Number of auxiliary contacts as change-over contact
  • Complete device with protection unit
    TRUE
  • Overload release current setting
  • Rated voltage
    440
  • Adjustment range undelayed short-circuit release
    190

EasyPact CVS100BS is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. EasyPact CVS100BS current-limiting technology greatly reduces damage to installation caused by short-circuit current. This product embeds a 32A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. EasyPact CVS100BS is compliant with international standards (IEC 60947, CCC, EAC).
