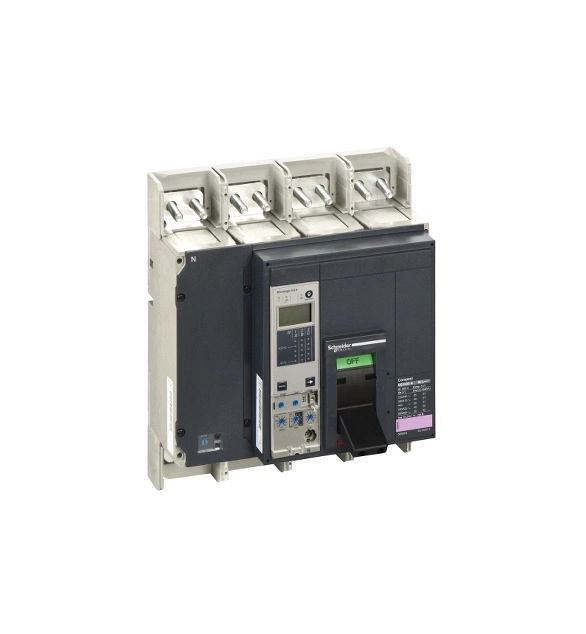

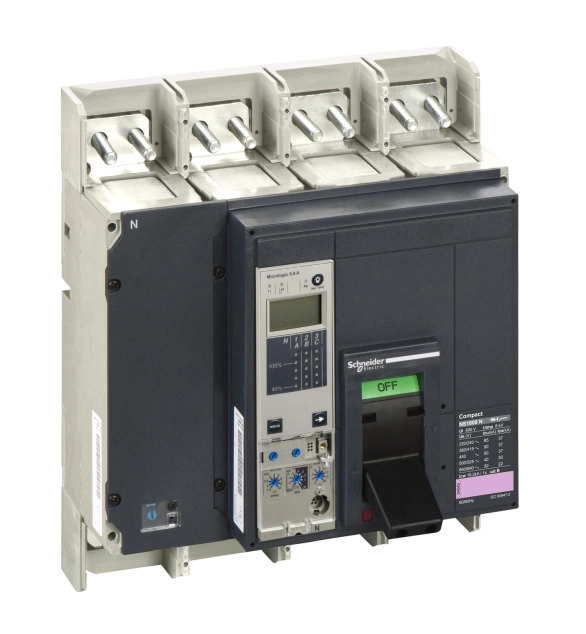

Авт. прекъсвач, ComPact NS1000N, 50kA/415VAC, 1000A, изваждаем, електрическо управление, без изключващо у-во, 4P

This product is a 3 poles ComPacT NS630bNA switch disconnector frame used to control and isolate electrical distribution circuits. This device is in fixed mounting mode and is electrically operated. This device is a fixed version and is electrically operated by a motor mechanism. The operational current is 630A (AC23A) and the operational voltage is 690V 50/60Hz. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current (Ie) is 630A (AC23A), and the conventional thermal current (Ith) is 630A at 60°C. The operational voltage is 690VAC 50/60Hz. The short-circuit making capacity (Icm) is 52kA peak. The short-time withstand current (Icw) is 25kA rms/0.5s and 19.2kA rms/1s. The switch disconnector is electrically operated, it is equipped with a motor mechanism module used for remote opening and closing operation. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (width), 210mm (height) and 147mm (depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
