СКУ: 33390

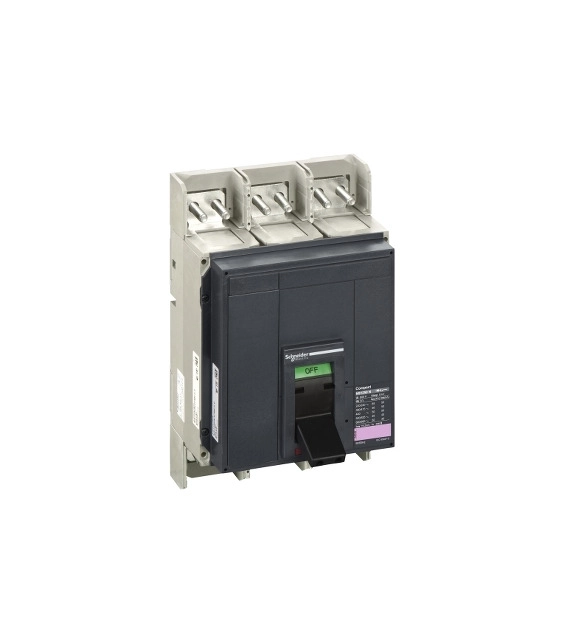

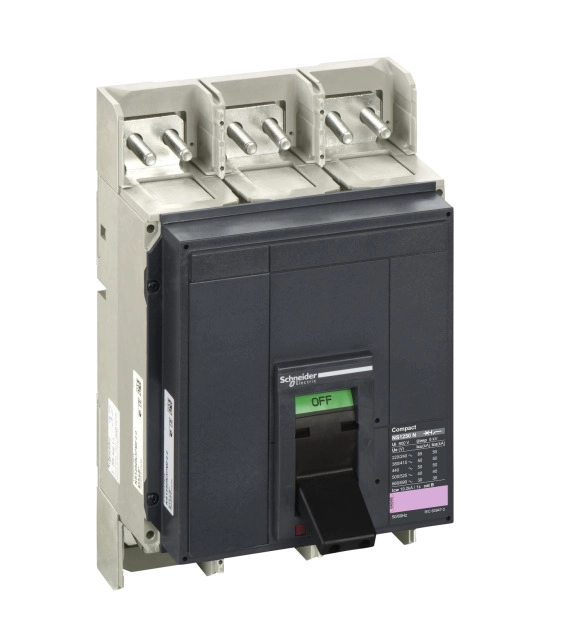

Авт. прекъсвач, ComPact NS1000N, 50kA/415VAC, 1000A, изваждаем, електрическо управление, без изключващо у-во, 3P
-
Brand
Schneider Electric
-
Number of poles
3
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
800
-
Type of electrical connection of main circuit
EV008864
-
Complete device with protection unit
FALSE
-
DIN rail (top hat rail) mounting optional
FALSE
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
Type of control element
EV000554
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
-
With integrated under voltage release
FALSE
-
Motor drive integrated
TRUE
-
Device construction
EV009210
This product is a 4 poles ComPacT NS1250N circuit breaker frame. This device is withdrawable and is electrically operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. This breaker frame has to be installed inside a chassis, which has to be ordered separately through the ComPacT NS product selector. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 1250A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The circuit breaker is electrically operated, it is equipped with a motor mechanism module used for remote opening and closing operation. This product comes with a variety of optional functions and accessories. The dimensions are 270mm (Heigh) x 306mm (Width) x 182mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
