СКУ: OVA47115

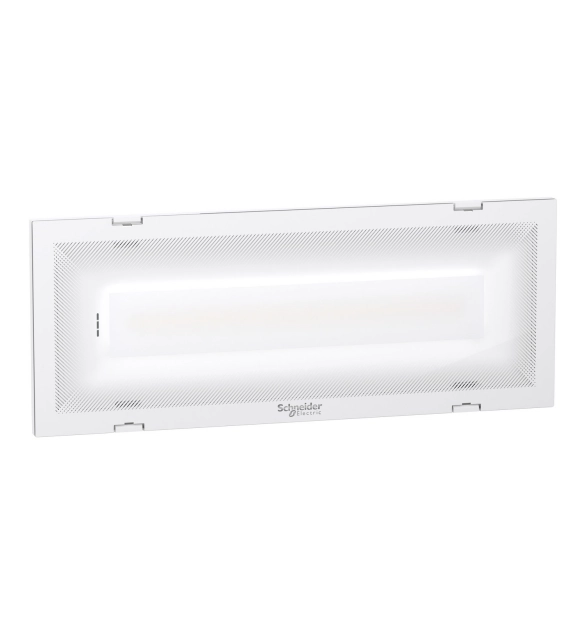

Аварийно осветление, Exiway Trend, Activa, избираема продължителност, 500lm, IP65, бяло
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Number of poles
2
-
Material housing
EV000139
-
Degree of protection (IP)
EV006421
-
Nominal voltage
230
-
Voltage type
EV000460
-
Impact strength
EV006815
-
With light source
TRUE
-
Lamp type
EV011515
-
Width
116
-
With remote switch connection
FALSE
-
Power supply system
EV009693
-
Luminaire with limited surface temperature, sign "D“
FALSE
-
Conductor cross section
2.5
-
With remote control
FALSE
-
Connection type
EV000415
-
With pictogram
FALSE
-
Exchangeable control gear
FALSE
-
Suitable for number of lamps
1
-
Colour housing
EV000202
-
Type of control gear
EV005787
-
Type of wiring
EV013935
-
Function
EV014459
-
Constant light output (CLO)
FALSE
-
Protection class
EV000583
-
Nominal operation time
1
-
Wiring system
EV009683
-
Monitoring equipment
EV009635
-
Mounting method
EV003792
-
Colour temperature
4500
-
Type of indicator
EV002409
-
Suitable for labelling type
EV000154
-
Rated life time L70/B50 at 25 °C
100000
-
Material cover
EV006821
-
Rated ambient temperature according to IEC62722-2-1
-5
-
Recognition distance
20
-
Battery quality
EV000154
-
Length
292
-
LED nominal current at constant current
100
-
Light distributor
EV000278
-
Energy efficiency class of the built-in lamp
EV000154
-
Rated luminous flux according to IEC 62722-2-1
500
-
Height/depth
37
-
Max. system power
3.69
This Schneider Electric Exiway Trend device is a Emergency Luminaire, Selectable duration, up to 500 lm, IP65, LED. The source of this device is LED. It has a 500lm luminous for 1 hour autonomy, 400lm luminous for 1.5 hour autonomy, 300lm luminous for 2 hour autonomy and 250lm luminous for 3 hour autonomy. It is a Lithium iron phosphate (LiFePO4) type lithium battery. It has a 6.4V rated voltage and 1.5Ah capacity. This device has a charging time of 12 hours and comes with self-test function. It has a 2 wires connection. Its Ue operating voltage of 230VAC with 50/60Hz. The power consumption is 9.3VA mains and 3.62W internal battery. This device enables wall, recessed ceiling and ceiling mounting. The dimensions are (W) 292mm x (H) 116mm x (D) 37mm. The color of this device is white. Its made of polycarbonate self-extinguishing material. The operating temperature is from 0 up to +40°C. It reaches IP65 and IK09 degrees of protection. Exiway trend is compact and essential design, satisfy aesthetics and performance requirements. It has a quick installation. Complies with the european regulations ENEC certified legibility distance in compliance with EN 1838 - 20 meters. This device is compliant with CE and ENEC standard.
