СКУ: OVA48060
Аварийно осветление, Exiway Smartduo, Dicube, 1h, 2x1200lm, непостоянно поддържано светене, черен
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Number of poles
2
-
Material housing
EV000139
-
Degree of protection (IP)
EV006421
-
Nominal voltage
230
-
Voltage type
EV000460
-
Length
406
-
With light source
TRUE
-
Lamp type
EV011515
-
With remote switch connection
FALSE
-
Power supply system
EV009693
-
Luminaire with limited surface temperature, sign "D“
FALSE
-
Conductor cross section
2.5
-
With pictogram
FALSE
-
Exchangeable control gear
FALSE
-
Type of control gear
EV005787
-
Light distributor
EV014411
-
Constant light output (CLO)
FALSE
-
Protection class
EV000583
-
Nominal operation time
1
-
Material cover
EV006823
-
Rated life time L70/B50 at 25 °C
100000
-
Function
EV014457
-
Mounting method
EV013927
-
Rated ambient temperature according to IEC62722-2-1
-5
-
With remote control
TRUE
-
Monitoring equipment
EV000154
-
Battery quality
EV000154
-
Colour housing
EV000206
-
Suitable for number of lamps
6
-
Rated luminous flux according to IEC 62722-2-1
2400
-
Width
253
-
Height/depth
170
-
Max. system power
11

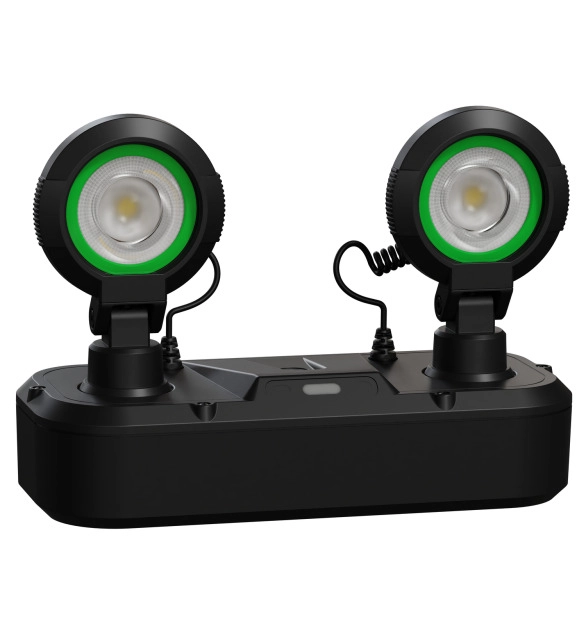

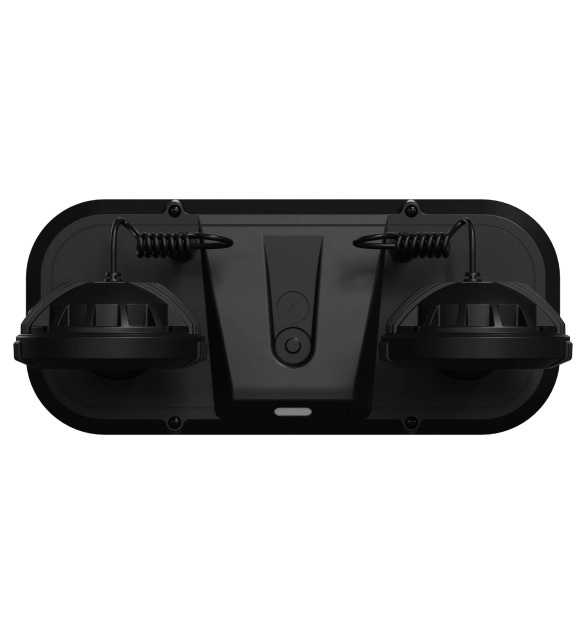

Discover the Exiway Smartduo, a modern emergency addressable lighting solution designed from Schneider Electric. This luminaire is responsible for providing lighting and avoiding the panic of complete darkness. It is suitable for automatic tests, remote monitoring, and BMS integration. It allows a change in luminous flux direction. The luminaire can be managed by the app. This device has 2 adjustable headlights. Its Ue rated operational voltage is 230VAC at 50/60Hz. The active power is 1.5W and the apparent power during recharge is 11VA. This device can be mounted on the wall or ceiling. The dimensions of the product are (W) 400mm x (H) 253mm x (D) 170mm. It is made up of polycarbonate (PC). The color of the product is black. Operation temperature is from 0°C up to 40°C, and it reaches IP65 degree of protection. Exiway Smartduo range with dual headlights is suitable for high ceilings or special applications. Developed to ensure safe evacuation of all buildings and high risks areas. The product complies with the EN 62034, EN 60598-2-22 standards and it has LCIE product certification.
