СКУ: 29364

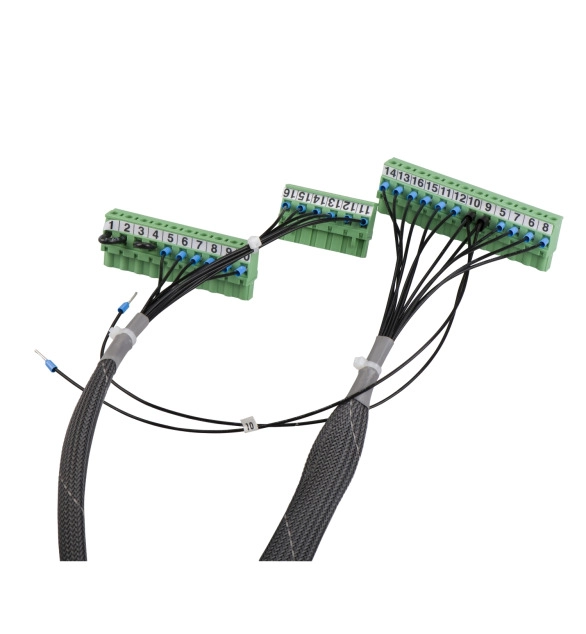

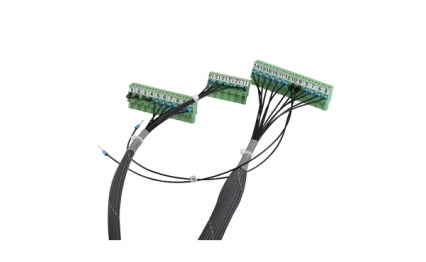

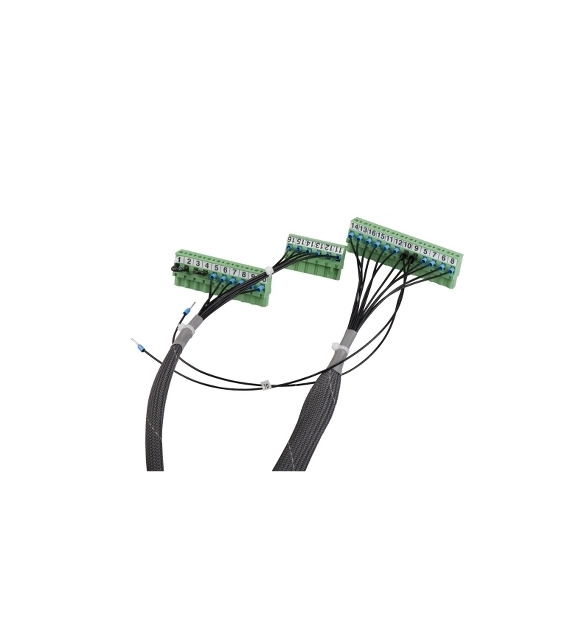

Аксесоари за Защита на веригите ACP 380..415 V
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as reversing switch
FALSE
-
Suitable for front mounting centre
TRUE
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Voltage release optional
FALSE
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Rated operating voltage
690
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Rated permanent current Iu
125
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Suitable for distribution board installation
TRUE
-
Type of control element
EV004095
-
Version as emergency stop installation
TRUE
-
Colour control element
EV000233
-
Number of auxiliary contacts as change-over contact
2
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Conditioned rated short-circuit current Iq
65
-
Rated short-time withstand current lcw
5.5
-
Rated operation power at AC-23, 400 V
55
-
Rated permanent current at AC-23, 400 V
125
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an automatic UA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The UA controller is used to create a source-changeover transfer from one source to another depending on the presence of voltage UN on the “Normal” source. UA controller integrates also the start up of an engine generator set, the shedding and reconnection of non-priority circuits, the transfer to the “Replacement” source if one of the phases on the “Normal” source fails. The control voltage is from 220VAC to 240VAC 50/60Hz.
