СКУ: LUCA32FU

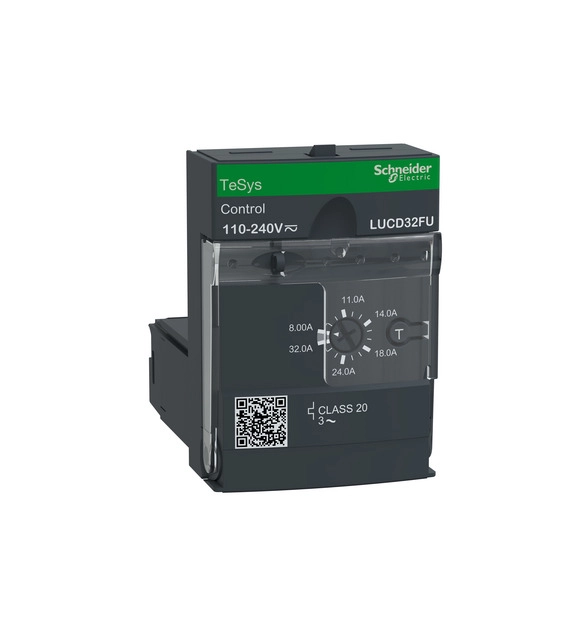

SCHNEIDER ELECTRIC Standard control unit, 3P, 8-32A, 690VAC, thermal magn. protection, 110-240VAC/DC
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
32
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
With ground fault protection function
TRUE
-
Short-circuit release function
EV003978
-
Type of motor protection
EV001281
-
Initial value of the undelayed short-circuit release - setting range
416
-
End value adjustment range undelayed short-circuit release
416
-
Overload release current setting
8
TeSys LRD thermal overload relay, 80A/1000V, thermal setting range 63-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
