SpaceLogic M310-S2 Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24 Vac/dc, 300 N, 2 x SPDT, IP54 | Spark & Co
  • 3D
  • 3D
  • 3D
|

СКУ: 8800211030

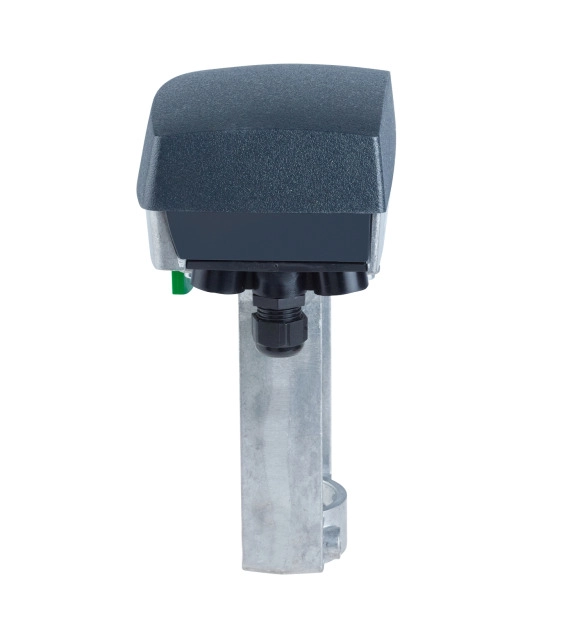

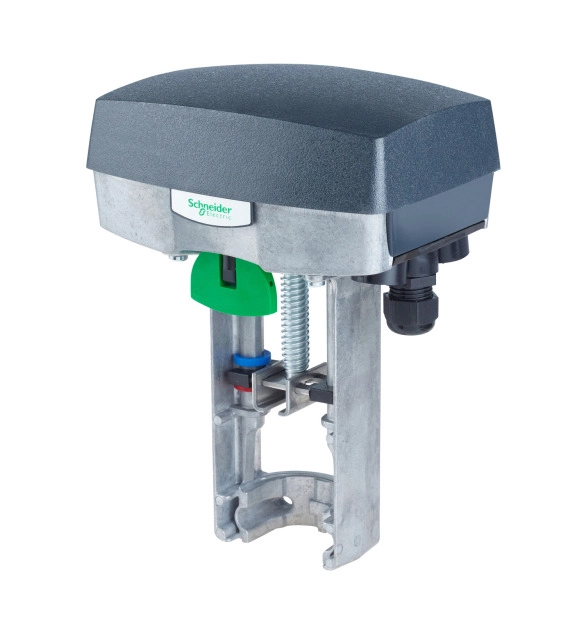

SpaceLogic M310-S2 Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24 Vac/dc, 300 N, 2 x SPDT, IP54

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Degree of protection (IP)
    EV006419
  • Potential free switch contact
    FALSE
  • Connection to stop valve
    EV000154
  • Adjustable position feedback signal
    TRUE
  • Control signal
    EV000154
  • Deactivated when closed
    TRUE
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Suitable for valve
    TRUE
  • Ambient temperature
    -10
  • Auxiliary contacts optional
    FALSE
  • Material housing
    EV000072
  • Automatic travel recognition
    FALSE
  • Stroke length
    32
  • Type of safety function
    EV000154
  • Degree of protection (NEMA)
    EV000069
  • Suitable for manual operation
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Self-adjusting travel length
    TRUE
  • Adjustable operating range
    FALSE
  • With mechanical setting indicator
    TRUE
  • Supply voltage
    EV021685
  • Auxiliary contacts
    TRUE
  • Height
    133
  • With safety function
    FALSE
  • Adjusting force
    300
  • Width
    181
  • Allowable relative humidity
  • Operating time
    20
  • Depth
    252

The SpaceLogic M310 is from a family actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 300 N, IP54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed.
