СКУ: PCSN030Y4W20

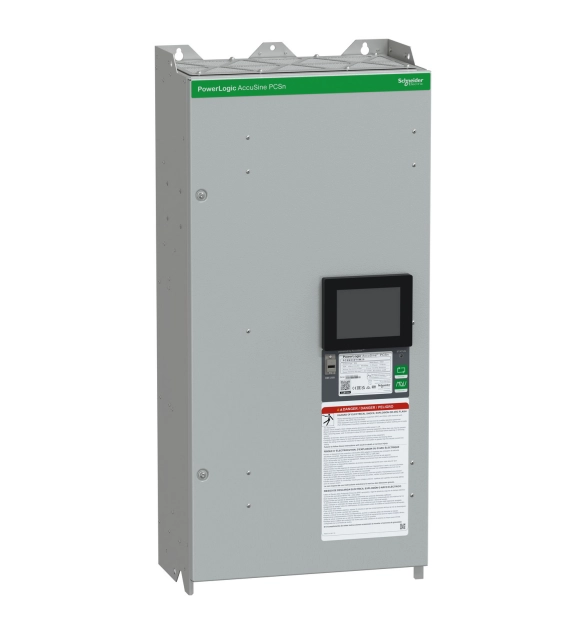

AccuSine PCSn - активен филтър 30A 208-415 VAC - стенен монтаж, IP20
-
Brand
Schneider Electric
-
Number of phases
3
-
Supporting protocol for CAN
FALSE
-
Voltage type of supply voltage
EV000460
-
With communication interface RS-232
FALSE
-
Supporting protocol for Modbus
TRUE
-
Height
960
-
Width
440
-
With communication interface RS-485
FALSE
-
With communication interface Ethernet
TRUE
-
Application
EV010631
-
Supply voltage
208
-
Depth
264
-
Rated operation current Ie at AC-1
30
-
Rated operation current Ie at AC-15, 400 V
30
-
Reduction blind power
21.6
-
Rated operation current Ie at AC-3
30
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is ingress protection IP20 and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 30 Amps, 90 Amps neutral. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 61 kg.
