СКУ: EVD1S120TBBC7

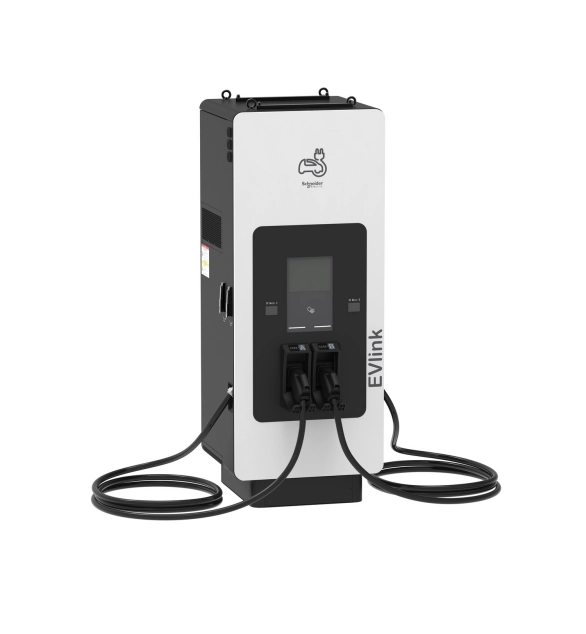

зарядна станция за електромобили, EVlink Pro DC, 120kW, CCS2 + CCS2 конектори, 7m кабел без кабелни водачи
-
Number of phases
3
-
Supporting protocol for CAN
FALSE
-
Voltage type of supply voltage
EV000460
-
With communication interface RS-232
FALSE
-
Supporting protocol for Modbus
TRUE
-
Brand
Square D
-
Depth
428
-
With communication interface RS-485
FALSE
-
Supply voltage
380
-
With communication interface Ethernet
TRUE
-
Application
EV010631
-
Reduction blind power
166
-
Width
582
-
Height
1323
-
Rated operation current Ie at AC-1
200
-
Rated operation current Ie at AC-15, 400 V
200
-
Rated operation current Ie at AC-3
200
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 402 kg.
