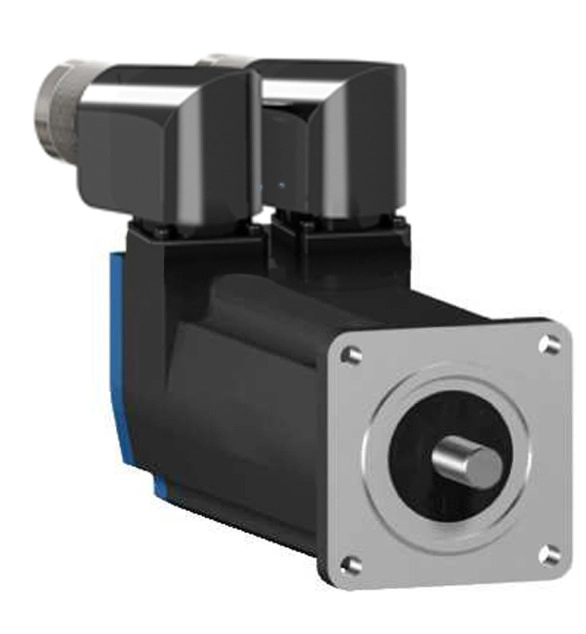

AC серво двигател BSH - 0.5 N.m - 4000 rpm - с шпонка - без спирачка - IP50

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 6-pole AC servo motor features maximum mechanical speed of 9000RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 0.73A and a continuous power of 0.45W. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 132.5mm and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 63mm mounting hole. It weighs 1.2kg. This range is compatible with Lexium 32 and Lexium 15 servo drives. This product is compatible with LXM15LD13M3 at 230V single phase, LXM15LU60N4 at 230V three phase. It supports 55mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
