СКУ: SE7350F5045
Зонов контролер за у-е на конвектори,ана
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Material
EV000139
-
Colour
EV000202
-
Mounting method
EV000384
-
Transparent
FALSE
-
Material quality
EV000403
-
Surface protection
EV006034
-
Surface finishing
EV000146
-
RAL-number (similar)
9010
-
External sensor
FALSE
-
With display
TRUE
-
With LED indication
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Other bus systems
EV000154
-
Bus system KNX
FALSE
-
Bus system LON
FALSE
-
Number of digital inputs
-
Bus system radio frequent
FALSE
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Manual set point setting
TRUE
-
Min. depth of built-in installation box
-
Class of the temperature control
EV013125
-
With anti-theft/dismantling protection
TRUE
-
Presence button
TRUE
-
With local operation
TRUE
-
Parallel-service possible
TRUE
-
Assembly arrangement
EV006351

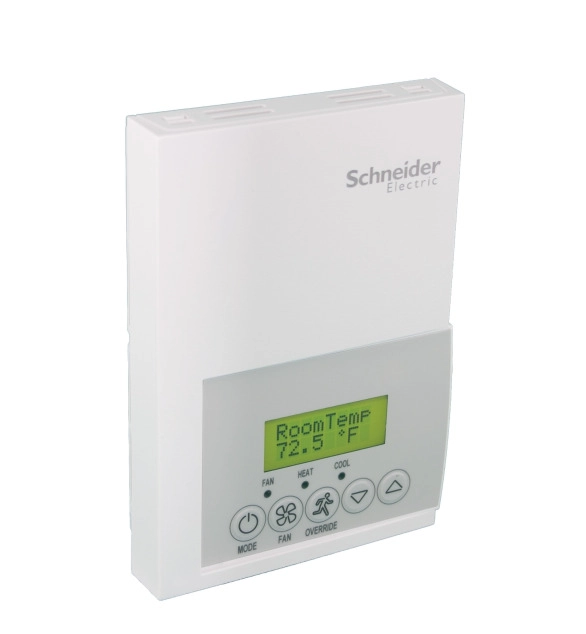

SE8350 Series room controllers are used for Low Voltage Fan Coil Unit control. The room controllers rated supply voltage is 24 AC at 50 or 60Hz +/-15%. The rated current is 4A. The device consumption is up to 12VA. The room controller is colored white and is equipped with a communication port that uses BACnet MS/TP protocol. The Temp accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5 °C for cooling and 4.5 to 32 °C for heating. The room controller is equipped with total of 16 I/Os. The analog output voltage is 0 to 10V DC at < 5mA into > 2 kOhm resistance. The digital output rating is 28V AC 50 or 60 Hz, 0.3A, 1.5A inrush current. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B. ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50 °C. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
