СКУ: M9XUP312
Захранващ гребен Multi9 - 3L - стъпка 18 мм - 12 модула - 115A
-
Brand
Schneider Electric
-
Number of poles
3
-
Width in number of modular spacings
18
-
Colour
EV000270
-
Insulated
TRUE
-
Type of electric connection
EV000158
-
Suitable for devices with auxiliary switch
FALSE
-
Number of phases
3
-
Suitable for devices with N-conductor
FALSE
-
Suitable for number of devices
4
-
Length
216
-
Max. rated operation voltage Ue
1000
-
Module width
18
-
Rated permanent current Iu
115

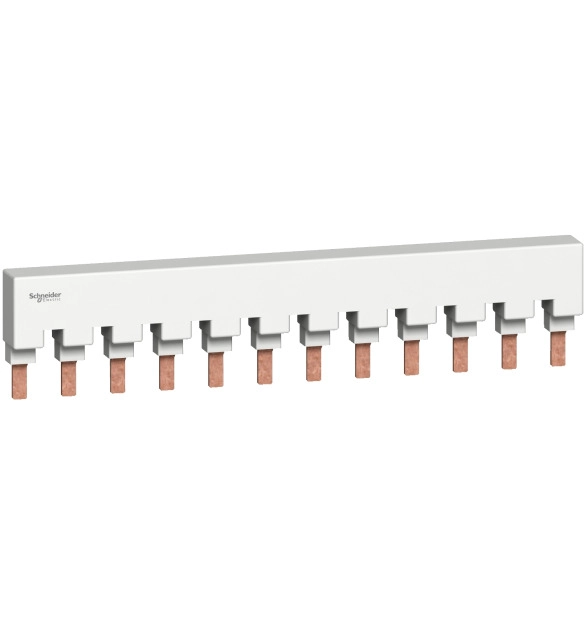

This Multi9 product is an uncuttable horizontal comb busbar 12 modules for Multi9 C60BP. It is dedicated to (Line) installations. The distribution type is 3L. It is a set of 1device. The length is 216mm. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 1000VAC. The color is light grey (RAL 7035). The degree of protection is IP20 with end-pieces and tooth covers. The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s conforming to IEC 60695-2-1 standard.
