СКУ: KSA1000ABG4
Захранващ елемент 800/1000А ляв
-
Brand
Schneider Electric
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
RAL-number
9001
-
Height
500
-
Power supply position
EV003685
-
Model
EV002646
-
Width
470
-
Rated voltage at AC 50 Hz
690
-
Rated current at AC 50 Hz
1000
-
Length
1229

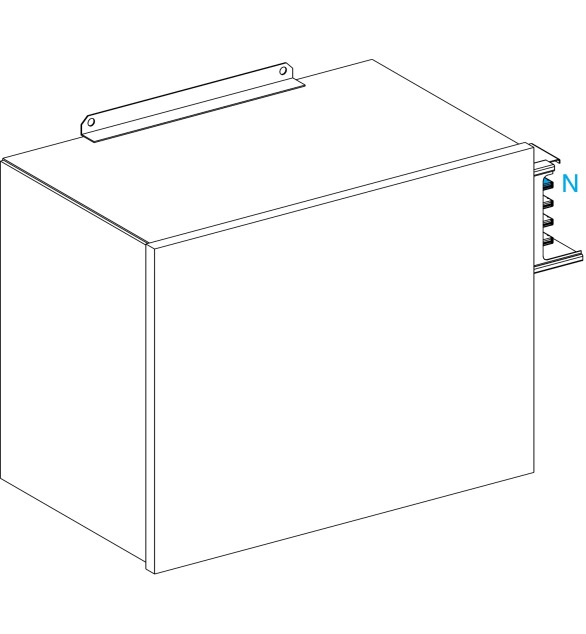

Canalis feed-unit for KSA. It is compatible with FL21 gland plate. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 800A and 1000A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with left mounting location, connection by Lug terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
