Миним.напр. изкл. MN 380-415V50/60HZ 440-480V60HZ UVR NSX100-630 | Spark & Co
  • 3D
|

СКУ: LV429408

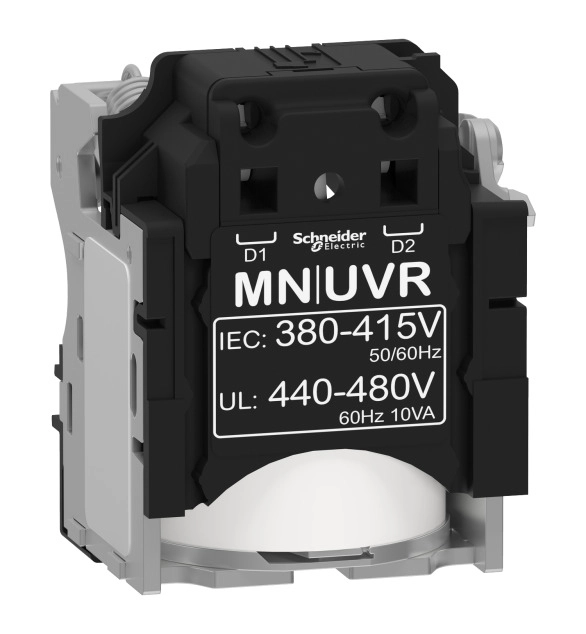

Миним.напр. изкл. MN 380-415V50/60HZ 440-480V60HZ UVR NSX100-630

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Suitable for power circuit breaker
    TRUE
  • Suitable for overload relay
    FALSE
  • Suitable for off-load switch
    TRUE
  • Type of electric connection
    EV005752
  • Rated control supply voltage Us at AC 50HZ
    380
  • Suitable for motor safety switch
    TRUE
  • Delayed
    FALSE
  • Rated control supply voltage Us at AC 60HZ
    440
  • Number of contacts as normally open contact
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
