СКУ: 8800210030

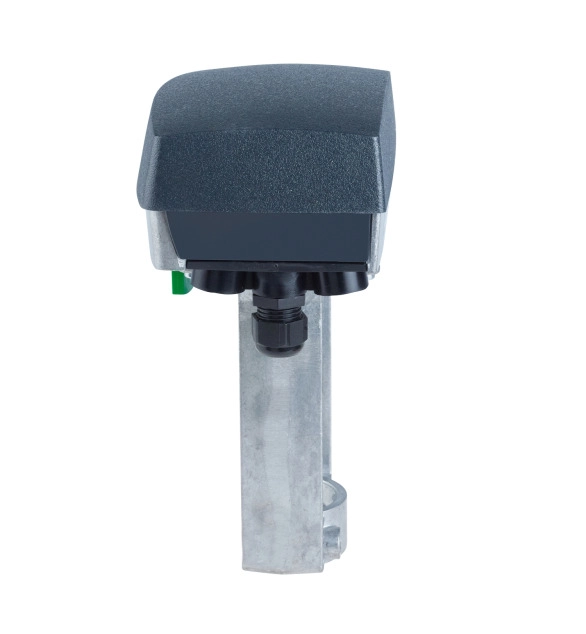

Задвижка M310 за вентил
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Degree of protection (IP)
EV006419
-
Potential free switch contact
FALSE
-
Connection to stop valve
EV000154
-
Control signal
EV000154
-
Supply voltage
EV021410
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
Suitable for air accessory
FALSE
-
Position reporting system
EV000494
-
Suitable for valve
TRUE
-
Ambient temperature
-10
-
Auxiliary contacts optional
FALSE
-
Material housing
EV000072
-
Adjustable operating range
TRUE
-
Automatic travel recognition
FALSE
-
Stroke length
32
-
Degree of protection (NEMA)
EV000069
-
Suitable for manual operation
FALSE
-
End contacts
EV000494
-
With top flange direct mount according to ISO 5211
FALSE
-
Self-adjusting travel length
TRUE
-
With mechanical setting indicator
TRUE
-
Height
133
-
Depth
255
-
With safety function
FALSE
-
Operating time
60
-
Adjusting force
300
-
Width
180
-
Allowable relative humidity

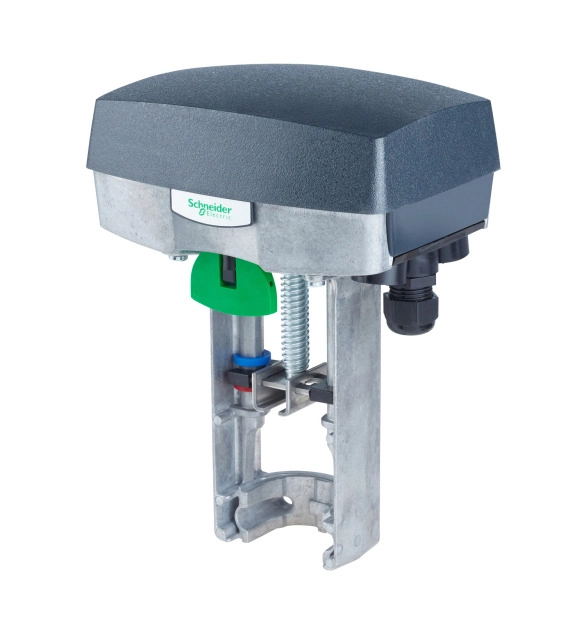

The SpaceLogic M310 is an actuators for the control of small 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 v, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 300 N, IP54 Protection class. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed. Conduit connection 3 x M20 screwed.
