СКУ: SSP1D440BD

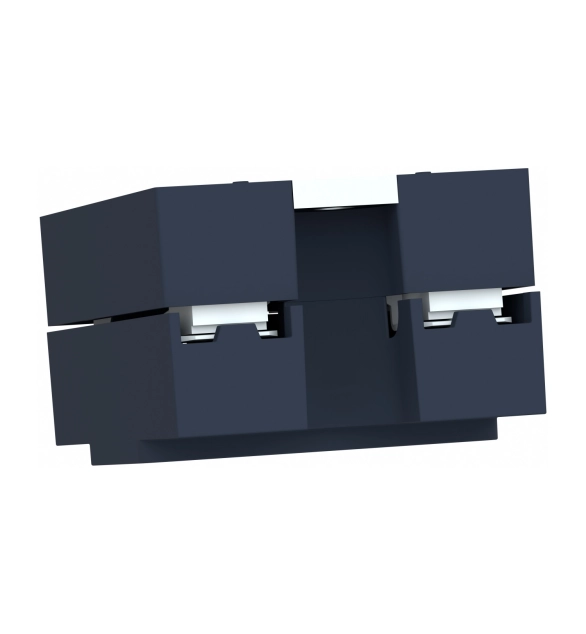

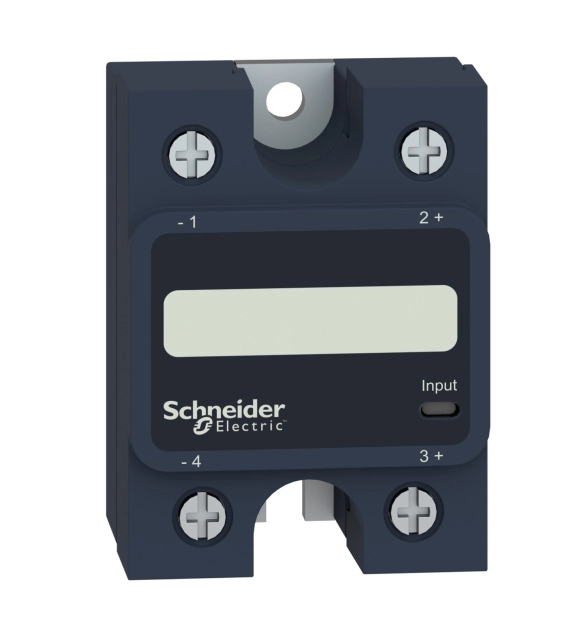

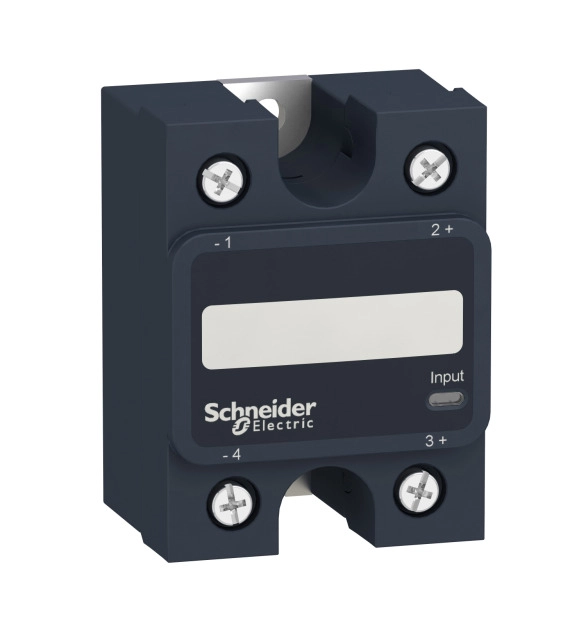

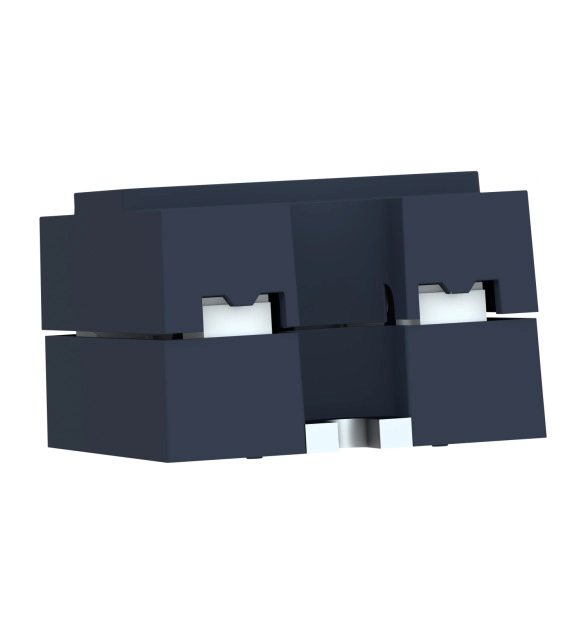

1Phase relay 40A DC 3.5 32V-1 150V
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Modular version
FALSE
-
Operating voltage
48
-
Rated control supply voltage Us at DC
4
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-53a
50
-
Rated operation current Ie at AC-51
50
-
Rated operation current Ie at AC-53b
50
-
Rated operation current Ie at AC-1
50
-
Rated operation current Ie at AC-3
50
This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 25 A, is controlled with a 3 to 32 V DC circuit, has a rated load voltage of 24 to 300 V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events.
