СКУ: PKB63Q535

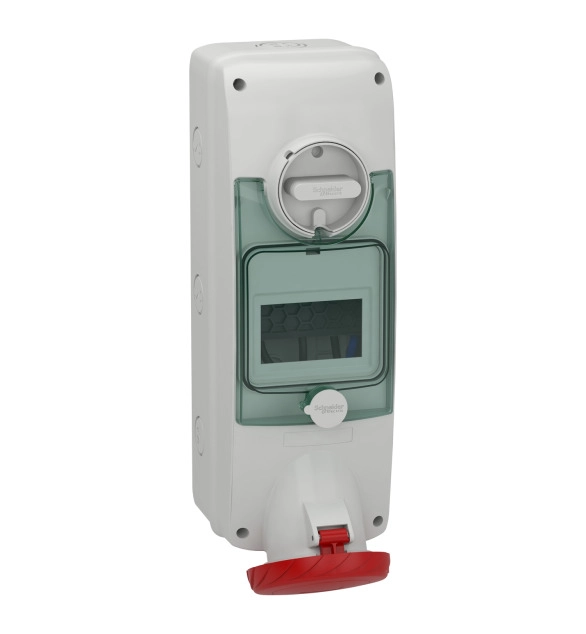

WALL SOCK SWITCH DIN 63A 3PNE 380-415V I
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Degree of protection (IP)
EV006421
-
Number of poles
4
-
Voltage according to EN 60309-2
EV011415
-
Identification colour
EV000233
-
Clock hour position
6
-
Military model
FALSE
-
IEC-amperage
63
-
Empty locations on mounting rail
FALSE
-
Switch
EV000551
-
With earth leakage switch
FALSE
-
Type of switch
EV005477
-
Model
EV006913
-
Protection
EV000154
Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 3P+N+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 63A is 25mm for 35mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 380-415VAC at 50/60Hz and its Ie rated operational current is 63A. This interlocked socket with captive screw connection is wall-mounted. The dimensions of the base plate are (W) 140mm x (H) 430mm. Operation temperature is from -25°C up to 40°C, and it reaches IP65 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind.
