Зарядна станция, EVlink Pro AC/AC , 22kW, 32A, 3P+N, T2S контакт, RDC-DD 6mA

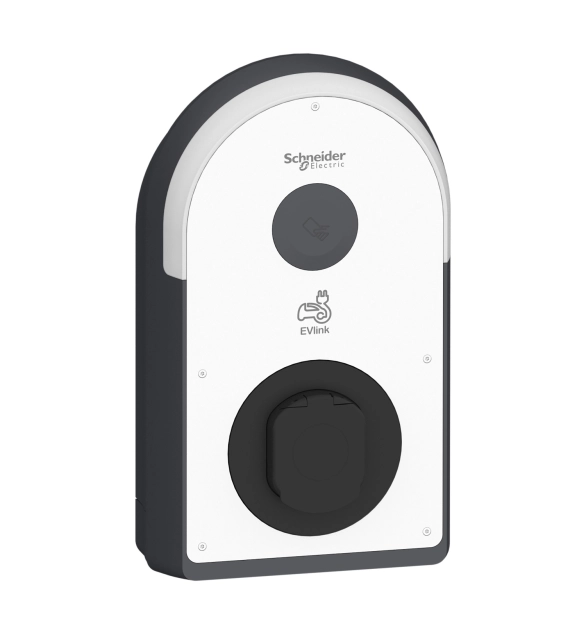

This EVlink Pro AC product is a wall-mounted charging station for all electrical vehicles compliant with IEC 61851-1 standard. It can also be floor-standing, either fixed on a pedestal or integrated into a kit enclosure. Both the pedestal and kit enclosure have to be ordered separately. It can be installed indoor as well as outdoor. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and +50°C. The storage temperature is between -40°C and +80°C. The output type is a T2 socket-outlet with a shutter (T2S), fixed on the front face of the station. All the contacts of T2S socket-outlet are silver-plated to avoid overheating. The nominal output power is 22kW. It is supplied in three-phase (3P+N). The rated charging current is 32A under 380VAC to 415VAC with 50Hz to 60Hz operating frequency. It can be used with a TT, TN-S, or TN-C-S earthing system. It also has an IT compatible with an additional isolation transformer on the power supply. The charging station is easy to install and to commission. It is recommended at multi-family home as well as at fleets, at street, or at work. The dimensions are (W) 317mm x (H) 529mm x (D) 153mm. The product weight is 7.2kg. The colour is dark grey (RAL 7016) on housing, white (RAL 9003) on front face, and black (RAL 9005) on back part. It embeds built-in protection against a 6mA residual direct current detection device (RDC-DD). The charging station can be fed by a cable coming from the rear, the top, or the bottom of it. To load an electrical vehicle, the access control is done by user authentication through RFID or NFC badge. But the charging station can also be used for free access. The load starting can be time-delayed. During the load time, the power can be limited to ensure the continuity of service and optimize the charging time of all the charging stations based on the same feeding. It has 2 Ethernet RJ45 ports for LAN connection. The parameters are set up through the eSetup app via Bluetooth or EcoStruxure EV Charging Expert. The charging station can be managed in standalone or in clustered architecture. The OCPP 1.6 communication protocol is used to connect to the supervision device. The available services are charge detail records, diagnosis capabilities, and load management. The charging station is certified with CE and EV Ready certifications.
