СКУ: BMP1001F3NA2A

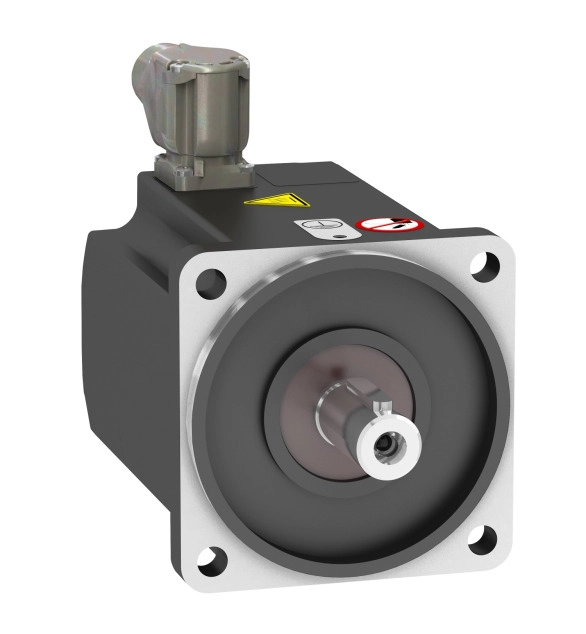

SCHNEIDER ELECTRIC Synchronous motor BMP - 480VAC, 0.95kW, IP65, IEC
-
Brand
Schneider Electric
-
Number of phases
3
-
Voltage type
EV000509
-
Degree of protection (IP)
EV000154
-
Rated frequency
50
-
Rated voltage
480
-
Material housing
EV000154
-
Construction type
EV000154
-
Bearing
EV000154
-
Model
EV006582
-
Motor efficiency class
EV000154
-
Overload capability
FALSE
-
Cooling method
EV000154
-
Shaft end type
EV000154
-
Vacuum pressure impregnation (VPI)
EV000154
-
With positive temperature coefficient resistor (PTC)
FALSE
-
With resistance temperature detector (RTD)
FALSE
-
Intrinsic safety (IS)
EV000494
-
Suitable for frequency control
FALSE
-
With anti-condensation
FALSE
-
Duty cycle
EV000154
-
Insulation class according to IEC
EV000154
-
Rated performance at rated frequency
0.26
-
Rated current
2.6
-
Nominal torque
0.9
-
Rated rotational speed at rated frequency
1500
-
Operating temperature
-
Number of poles
-
Starting torque ratio
-
Breakdown torque ratio
-
Starting current ratio
This product belongs to Altivar 32, a range of variable speed drives. This BMP synchronous motor has a power rating of 0.95kW and works at a rated supply voltage 480V. Its nominal speed is 3000rpm. Its shaft end is keyed. It is equipped with a rotatable right-angled connector. It has no holding brake. This AC synchronous motor features High power density, and High energy efficiencys. It is a synchronous motor with a medium moment of inertia. Its shaft end is IP65 standard rating and IP67 rating with a kit. This motor has a 100mm flange, with a 19mm shaft diameter, and 40mm shaft length. It weighs 3.34kg. BMP motor/Altivar 32 speed drive combination is made for hoisting machines, material handling machines, textile machines, wood-working machines. BMP motors are certified by UL, cUL, DESINA, and have CE declaration of conformity. This BMP motor with single cable connectivity is compatible with Altivar 32 and Altivar Machine 320 variable speed drives. All mounting positions are permitted, horizontal mounting (IMB5), vertical mounting (IMV1 and IMV3) in accordance with IEC 60034-7. Altivar 32 are drives for complex machines 0.18 to 15 kW. With its extra-slim format, Altivar 32 offers numerous advantages in the control of asynchronous and synchronous motors operating in open loop mode.
