СКУ: VZ308C-15BP02

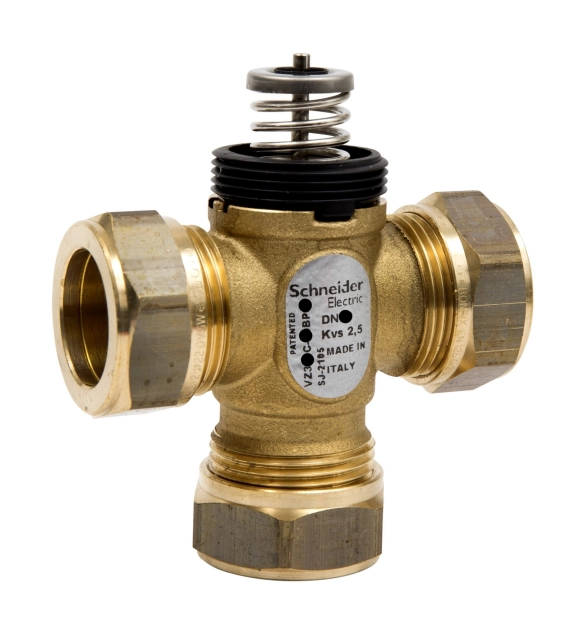

VZ308C Zone Valve, 3-Way, PN16, DN15, 15 mm O/D Compression, Kvs 0.4 m?/h, 2.5 mm Stroke.
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Surface protection
EV006034
-
Suitable for manual operation
TRUE
-
Ambient temperature
5
-
Position reporting system
EV000494
-
Auxiliary contacts
FALSE
-
Adjustable operating range
FALSE
-
With coupling connection 1
FALSE
-
With coupling connection 2
FALSE
-
Housing material
EV000149
-
Flange compression class
EV020104
-
Outer pipe diameter all connections
15
-
Adjustable position feedback signal
FALSE
-
Width
66
-
Control signal
EV021430
-
With end contacts
FALSE
-
Article compression class
EV020104
-
Leakage loss of Kvs value
0.005
-
Nominal diameter
EV020209
-
Connections
EV000154
-
Height
32
-
Zero-pressure return flow
EV000494
-
Characteristic curve
EV020004
-
Max. pressure difference in opened position
16
-
Material quality
EV020186
-
Max. medium temperature (continuous)
95
-
Length of connection 2
-
Length of connection 1
-
Working length connection 2
-
Min. medium temperature (continuous)
5
-
Working length connection 1
-
Kvs value
0.6
The VZ408C is a small linear three-way with bypass zone valve used for the control of hot or chilled water in terminal units. It is designed to be used with the MZ140 family of thermal actuators. The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. 15mm Compression connection. DN15, Kvs: 0.6 m³/h. Pressure class PN16, stroke 2.5 mm, Normally closed (A-Ab). It is recommended to fit a strainer upstream of the valve to increase reliability and to follow water treatment guidelines as detailed in VDI 2035. Valves should be installed in the return pipe to reduce exposure to media temperature extremes.
