СКУ: VZ308C-15BP01

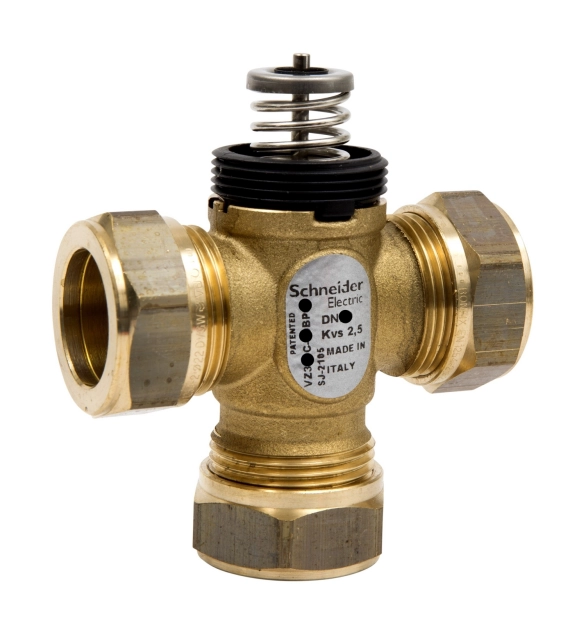

VZ308C Zone Valve, 3-Way, PN16, DN15, 15 mm O/D Compression, Kvs 0.25 m?/h, 2.5 mm Stroke.
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Surface protection
EV006034
-
Suitable for manual operation
TRUE
-
Ambient temperature
5
-
Position reporting system
EV000494
-
Auxiliary contacts
FALSE
-
Adjustable operating range
FALSE
-
With coupling connection 1
FALSE
-
With coupling connection 2
FALSE
-
Housing material
EV000149
-
Flange compression class
EV020104
-
Outer pipe diameter all connections
15
-
Adjustable position feedback signal
FALSE
-
Control signal
EV021430
-
With end contacts
FALSE
-
Article compression class
EV020104
-
Leakage loss of Kvs value
0.005
-
Kvs value
1
-
Nominal diameter
EV020209
-
Zero-pressure return flow
EV000494
-
Characteristic curve
EV020004
-
Max. pressure difference in opened position
16
-
Material quality
EV020186
-
Max. medium temperature (continuous)
95
-
Length of connection 2
-
Length of connection 1
-
Connections
EV020242
-
Working length connection 2
-
Min. medium temperature (continuous)
5
-
Working length connection 1
The VZ319E is a small linear three-way zone valve used for the fine control of hot or chilled water in terminal units. It is designed to be used with the MZ2000 family of electro-mechanical actuators, these actuators are available in 3 point floating and modulating control. The valve utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The 5.5mm stroke length coupled with the high resolution MZ20 electro-mechanical actuator provides good hydronic control. The valve is male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 15, G1/2A connection, 1.6 Kvs. Pressure class PN16, stroke 5.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).
