СКУ: BMXDDI6402KH

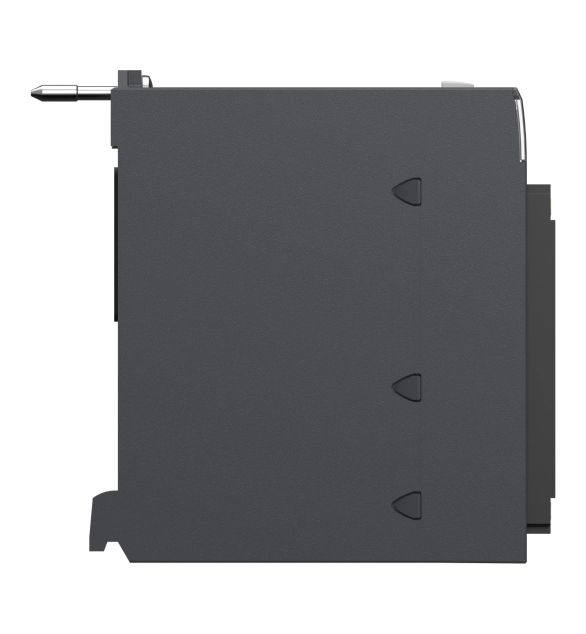

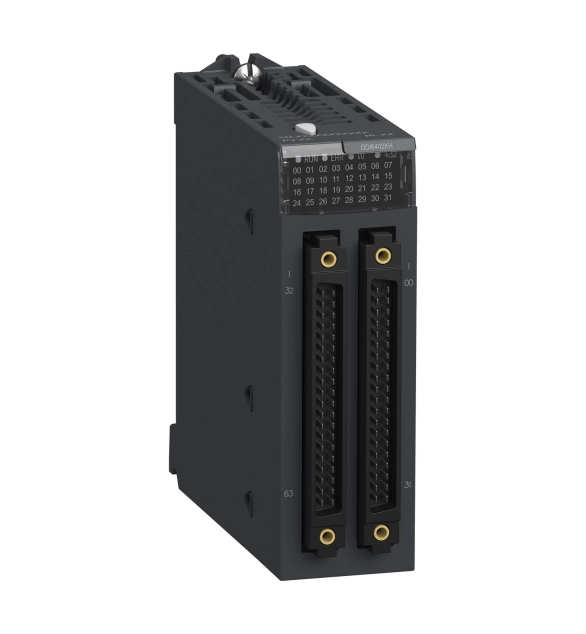

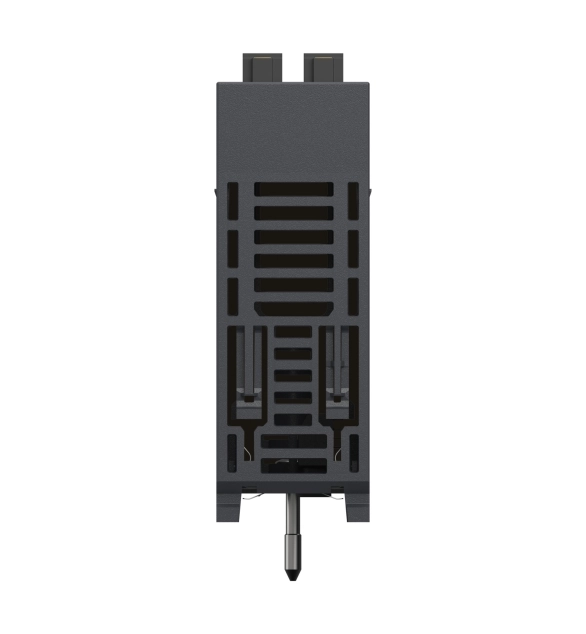

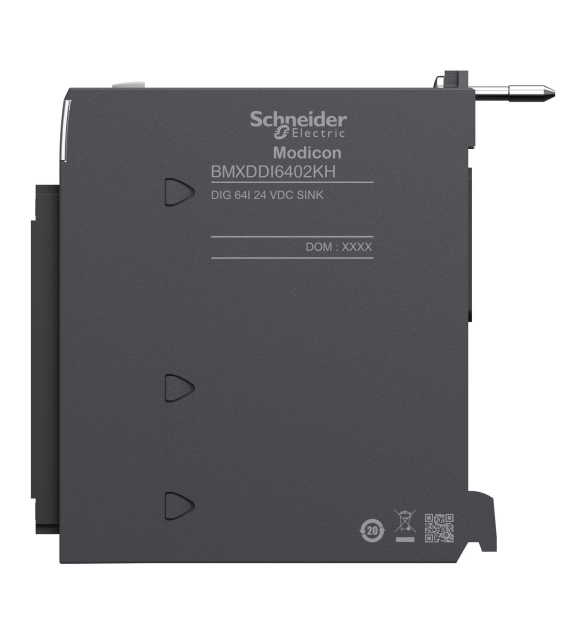

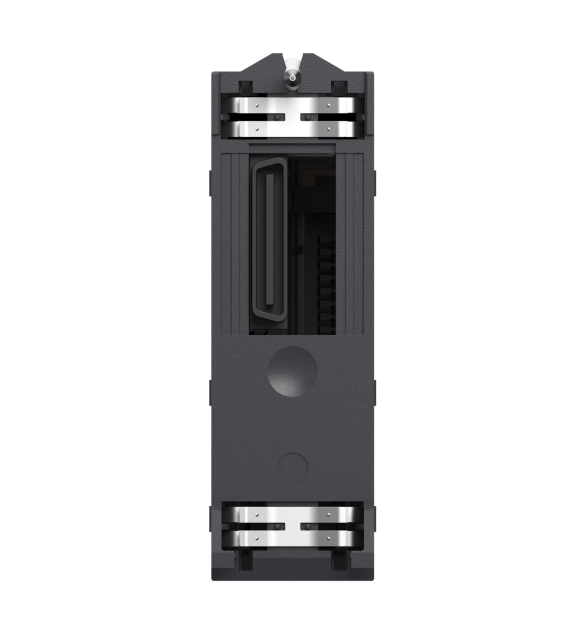

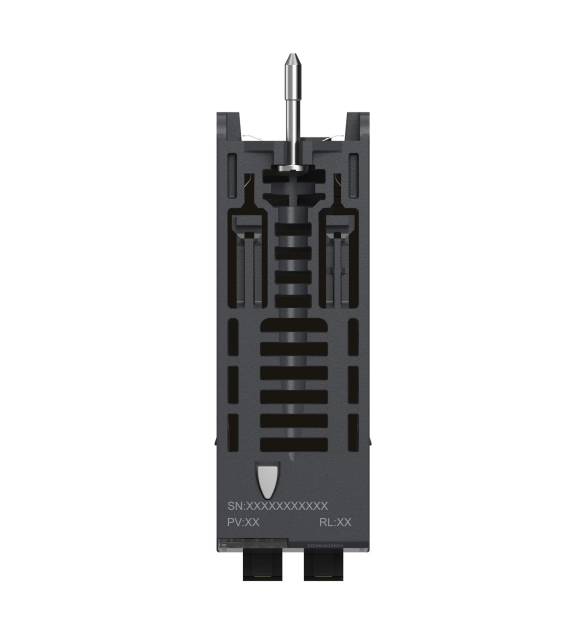

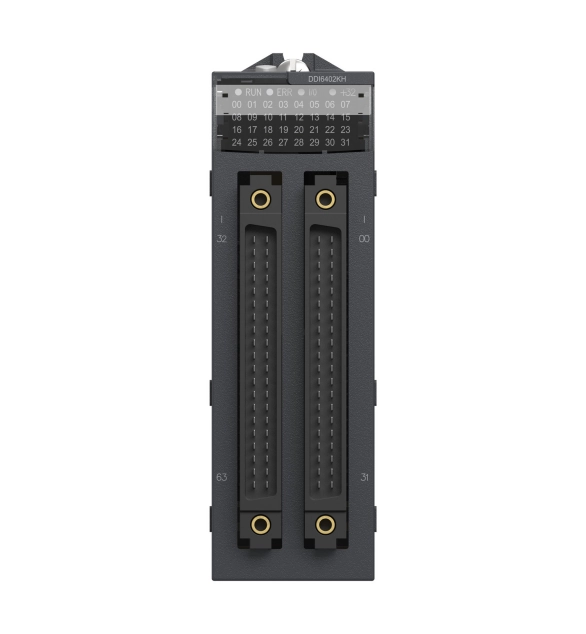

дискретен входен модул X80 - 64 входа - 24 V DC положителен - за тежка среда
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Height
55
-
Digital inputs configurable
FALSE
-
Explosion safety category for dust
EV000154
-
Explosion safety category for gas
EV000154
-
Depth
40
-
Type of digital output
EV000494
-
Digital outputs configurable
FALSE
-
Redundancy
FALSE
-
Width
120
-
Short-circuit protection, outputs available
TRUE
-
Type of voltage (input voltage)
EV000461
-
Input current at signal 1
0.6
-
Permitted voltage at input
19
-
Number of digital inputs
64
-
Time delay at signal exchange
7
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 input channels and it is supplied with 24V DC (positive). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 511375 hours of MTBF. This discrete module has a weight of 0.145kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws.
