Връзка - Коляно, Canalis KSA250, алуминий, 100/160/250A, страна A, изработено по мярка, завиващо наляво, 3L+N+PE, бяло RAL9001 | Spark & Co
  • 3D
|

СКУ: KSA250DLL42A

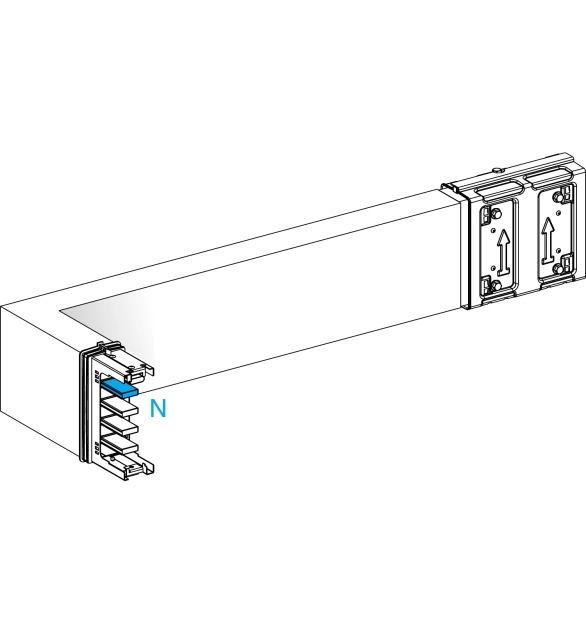

Връзка - Коляно, Canalis KSA250, алуминий, 100/160/250A, страна A, изработено по мярка, завиващо наляво, 3L+N+PE, бяло RAL9001

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Degree of protection (IP)
    EV006420
  • Number of poles
    5
  • RAL-number
    9001
  • Flexible
    FALSE
  • Number of conductors (without earthing)
    4
  • Rated voltage at AC 50 Hz
    230
  • Model
    EV009899
  • Rated current at AC 50 Hz
    400
  • Length
    0.165

Canalis busbar trunking for KSA. It's applied to rise medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 250A at 35 ℃. Mounted by screws with right neutral position. Riser foot busbar whose material is aluminium and trunking polarity is 3L + N + PE. Designed with 1 tap-off outlets. It provides 0.69 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
