Винтова клема, основна клема за изключване, 2 точки, 2,мм?, сива | Spark & Co
  • 3D
|

СКУ: NSYTRV22TB

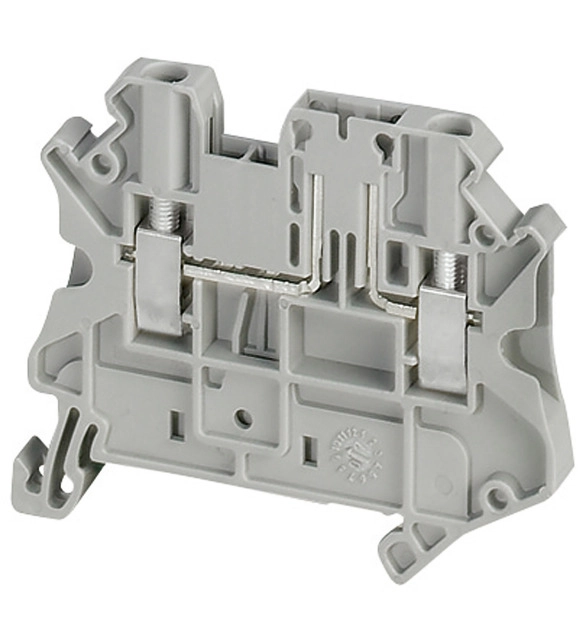

Винтова клема, основна клема за изключване, 2 точки, 2,мм?, сива

  • Brand
    Schneider Electric
  • Colour
    EV000270
  • Mounting method
    EV005503
  • Rated voltage
    500
  • Number of levels
    1
  • Type of electrical connection 1
    EV000415
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Material insulation body
    EV000403
  • Explosion-tested version 'Ex e'
    FALSE
  • Type of electrical connection 2
    EV000415
  • Closing plate required
    TRUE
  • Operating temperature
    -40
  • Number of clamp positions per level
    2
  • Width
    5.2
  • Connectable conductor cross section solid-core
    0.14
  • Connectable conductor cross section multi-wired
    0.14
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14
  • Rated current In
    20
  • Height
    47.5
  • Type of component
    EV005485

Linergy TR is terminal block for Linergy. It belongs to linergy carrier Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 16A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
