СКУ: XB7NH25
Бутон, Harmony XB7, черен, равен, 22 мм, със задържане, 1NO+1NC клеми с винтова скоба
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Spring-return
FALSE
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Switching function latching
TRUE
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Colour front ring
EV000206
-
Degree of protection (NEMA)
EV000154
-
Type of button
EV000880
-
Colour button
EV000711
-
Degree of protection (IP)
EV008925
-
Number of contacts as change-over contact
-
Number of command positions

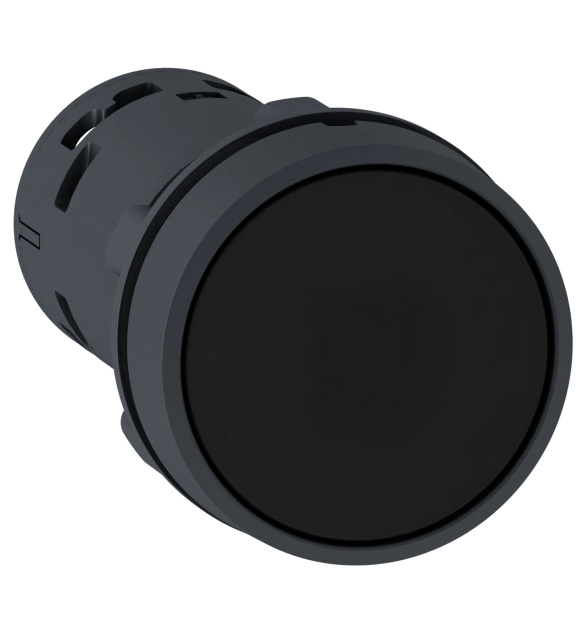

This Harmony XB7, flush monolithic black push button operates with latched push to release mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
