Винтова клема Linergy TR, захранваща клема, 2 точки, съединител с накрайник, 150mm?, сива | Spark & Co
  • 3D
|

СКУ: NSYTRV1502B

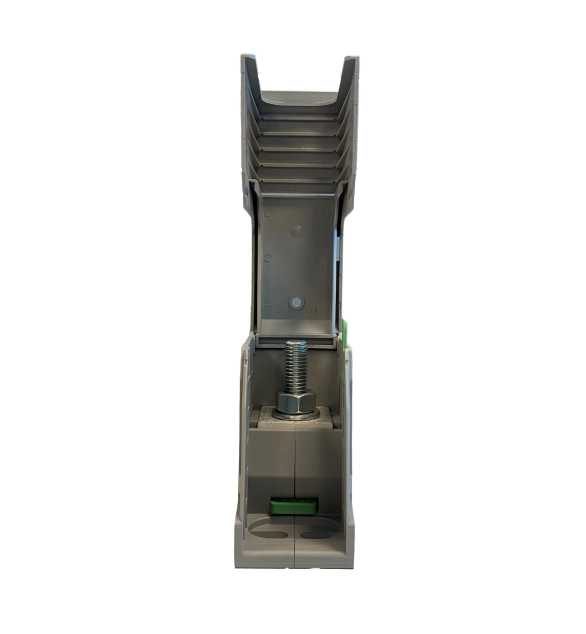

Винтова клема Linergy TR, захранваща клема, 2 точки, съединител с накрайник, 150mm?, сива

  • Brand
    Schneider Electric
  • Colour
    EV000270
  • Mounting method
    EV005503
  • Number of levels
    1
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Closing plate required
    FALSE
  • Material insulation body
    EV000403
  • Rated voltage
    1000
  • Explosion-tested version 'Ex e'
    TRUE
  • Number of clamp positions per level
    2
  • Type of electrical connection 2
    EV008864
  • Type of electrical connection 1
    EV008864
  • Width
    41
  • Connectable conductor cross section solid-core
    35
  • Connectable conductor cross section fine-strand with cable end sleeve
    6
  • Connectable conductor cross section multi-wired
    6
  • Operating temperature
    -60
  • Height
    84.5
  • Connectable conductor cross section fine-strand without cable end sleeve
    6
  • Rated current In
    285

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 150 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1500V conforming to EN/IEC 60947-7-1. The rated current is 309A conforming to EN/IEC 60947-7-1 and 310A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 lug to lug terminals. It could be connection and disconnection by screwdriver. It is compatible with enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD and PanelSeT. Sold in lots of 5 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
