СКУ: VF208W-150NS

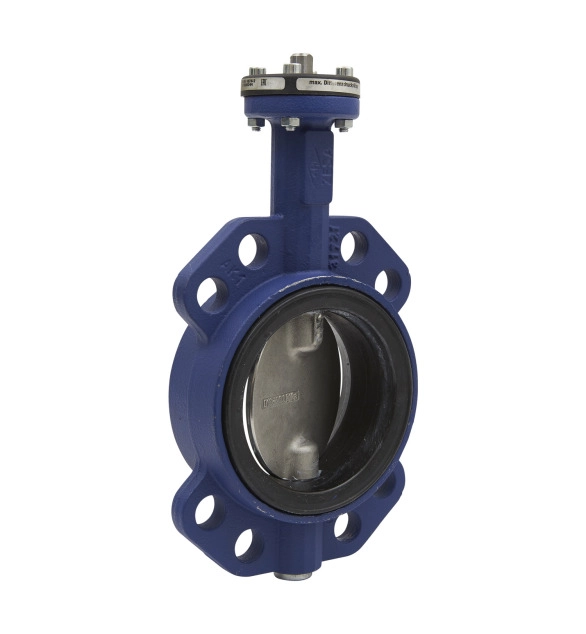

VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, 316 Stainless Steel Disc, EPDM Liner, Kvs 1790 m?/h, Max ?P 300 kPa
-
Brand
Schneider Electric
-
Material housing
EV000154
-
Material quality
EV000154
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Surface protection
EV001753
-
Material quality valve butterfly
EV000154
-
VdS quality mark
FALSE
-
Housing lining
EV020656
-
Type approval according to BBR/EKS
FALSE
-
Material valve butterfly
EV000154
-
Valve butterfly lined
FALSE
-
KIWA certified
FALSE
-
Gastec QA mark
FALSE
-
Connections
EV000154
-
Permitted by NCP
FALSE
-
Operation
EV000154
-
Sealing
EV006730
-
LPCB quality mark
FALSE
-
FM quality mark
FALSE
-
Standard
EV021181
-
ULC quality mark
FALSE
-
UL quality mark
FALSE
-
Valve design
EV020476
-
Fire-safe
FALSE
-
Material primary spindle seal
EV006730
-
Material quality spindle
EV000154
-
Material spindle
EV000166
-
Medium temperature (continuous)
-10
-
Outer pipe diameter all connections
150
-
Nominal diameter
EV020219
-
Length operating element
56
-
Kvs value
1790
-
Construction length
352
-
Height operating element
212
-
Diameter handwheel
142
The VF208W is a new generation butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron construction provides a long life and high corrosion resistance. The EPDM soft seats provide tight shut off and zero leakge, for a better energy saving, maintenance free, double sealing of stem, centrical disc bearing. Valve size: DN150, Flange, uncharacterized flow, kvs: 1790 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 300 Kpa. EPDM seals provide a working temperature range of -10 °C to + 100 °C, the soft seat seal ensures a tight close off with no leakage. Uncharacterized flow characteristics provide a good flow control, integrated dew point barrier. No linkage kits required.
