Вентилатор с решетка 850м3/н 400V IP54 | Spark & Co
  • 3D
|

СКУ: NSYCVF850M400PF

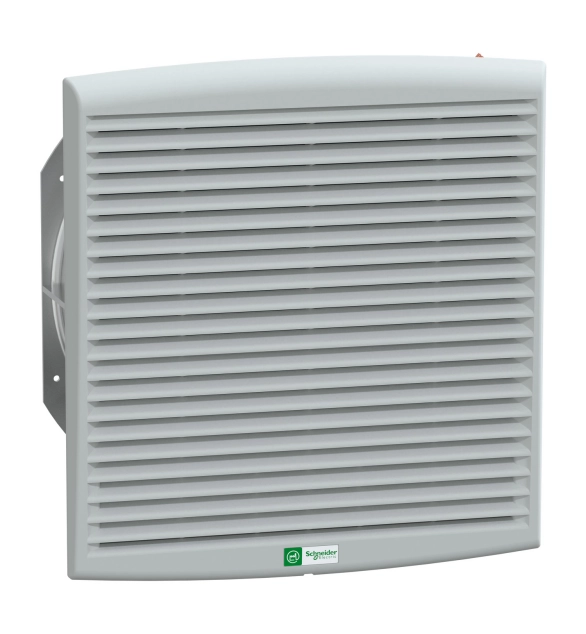

Вентилатор с решетка 850м3/н 400V IP54

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Voltage type
    EV000460
  • Degree of protection (IP)
    EV006419
  • Degree of protection (NEMA)
    EV022254
  • Suitable for wall built-in
    FALSE
  • Suitable for 19 inch rack mounting
    FALSE
  • Air circulator
    TRUE
  • With protective cover
    TRUE
  • Mounting method
    EV002068
  • Built as slide-in ventilator
    TRUE
  • Roof ventilator
    FALSE
  • With filter
    TRUE
  • Number of fans
    1
  • Height
    336
  • Width
    316
  • Depth
    162
  • Noise emission
    77
  • Operating voltage at AC 50 Hz
    400
  • Operating voltage at AC 60 Hz
    400
  • Rated power
    126
  • Volume flow, freeblowing
    931

This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 170 Pa It has a power range of 126 W 50 Hz and 126 W 60 Hz, and a free flow rate of 803 m3/h at 60 Hz and 931 m3/h at 50 Hz It can be used in ambient air temperatures ranging from -15 to 60°C It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 75-77 dB The cut-out dimensions of the fan are 291 x 291 mm This fan also comes with an anti-insect filter included
