Разединител N 50A за предпазител 14 X 51 | Spark & Co
  • 3D
|

СКУ: DF143NC

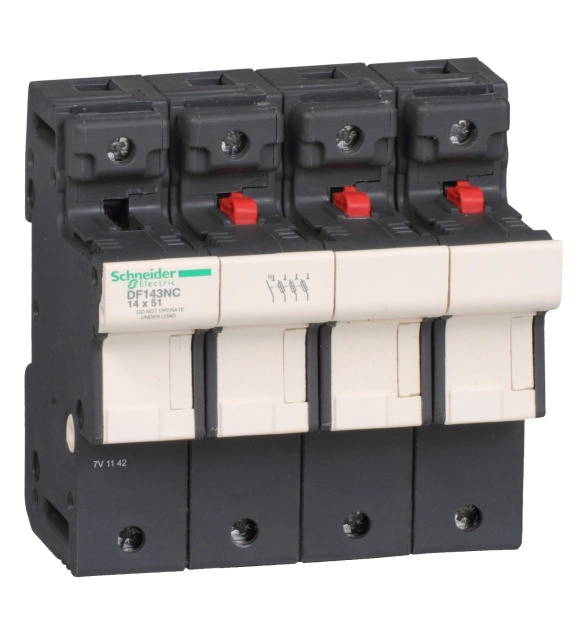

Разединител N 50A за предпазител 14 X 51

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Mounting method
    EV000242
  • With optical defect indication
    FALSE
  • Width in number of modular spacings
    6
  • Number of poles
    4
  • Concurrently switching neutral conductor
    TRUE
  • Lockable
    FALSE
  • Built-in depth
    70
  • Nominal voltage
    690
  • For fuse size
    EV010287

TeSys DF modular fuse carrier, 4 poles (3P+N), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA at 400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately), it provides a Neutral pole fitted with a locked tubular link. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
