СКУ: 7311145000

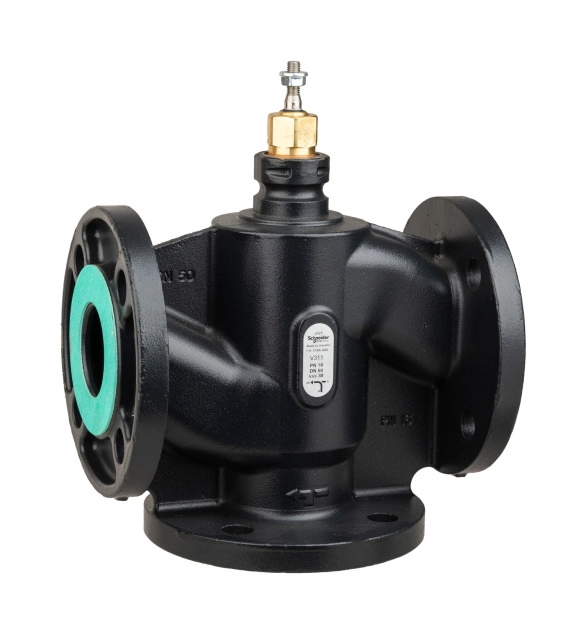

Venta V311 Globe Valve, 3-Way, PN16, Flanged, DN50, 38 Kvs, Nodular Iron Body & Seat, Brass plug,
-
Brand
Schneider Electric
-
Surface protection
EV006034
-
Material quality
EV000154
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Kvs value
16
-
Characteristic curve
EV021552
-
Min. medium temperature (continuous)
-20
-
Stroke length
20
-
Leakage loss of Kvs value
0.005
-
Housing material
EV000117
-
Outer pipe diameter all connections
32
-
Nominal diameter
EV020212
-
Connections
EV000106
The V211T is an internally threaded 2-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN15, Flow capacity, Kvs: 4.0 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes. Valve Length (between flanges) is 13 mm, height is 164.5 mm, width 95 mm, Weight is 2.1 Kg. High Controllability and long life.
