SCHNEIDER ELECTRIC Contactor - 3P(3NO), AC-3, <=440V 40A, 220V AC 50/60 Hz coil | Spark & Co
  • 3D
|

СКУ: LC1D40AM7

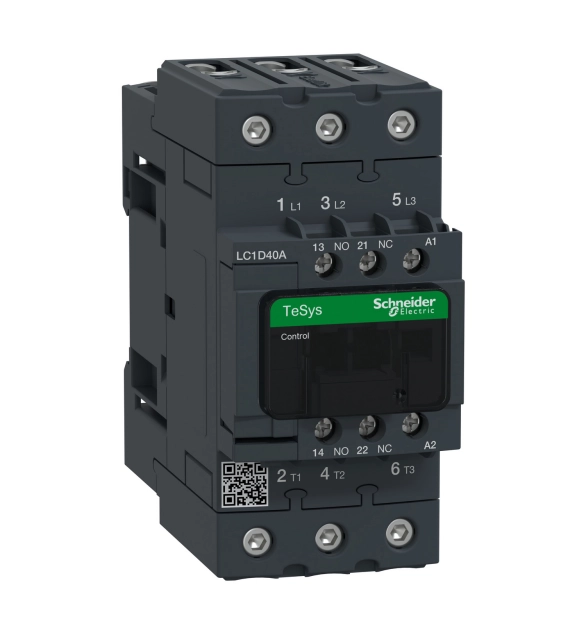

SCHNEIDER ELECTRIC Contactor - 3P(3NO), AC-3, <=440V 40A, 220V AC 50/60 Hz coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    18.5
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    220
  • Rated control supply voltage Us at AC 60HZ
    220
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    60
  • Rated operation current Ie at AC-3, 400 V
    40
  • Rated operation current Ie at AC-4, 400 V
    20
  • Rated operation power at AC-4, 400 V
    9
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW/400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
