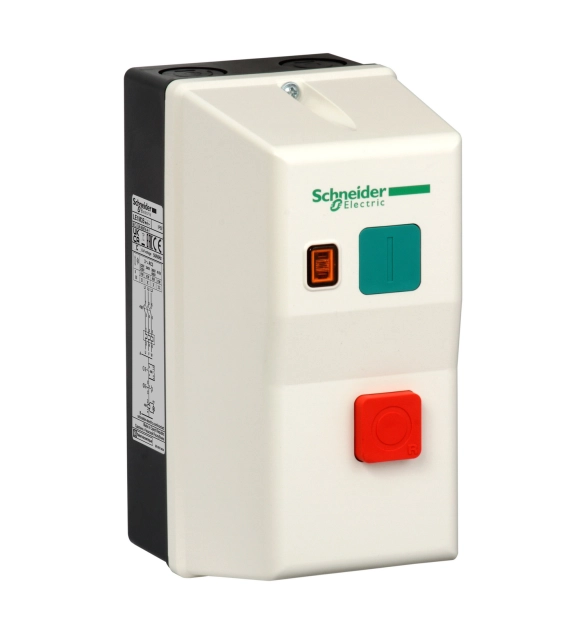

Устройства за директен пуск 4KW 3P 415V5

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Rated operation power at AC-3, 400 V
  3
• Voltage type for actuating
  EV000460
• Degree of protection (IP)
  EV006421
• Height
  160
• Suitable for emergency stop
  FALSE
• Rated control supply voltage Us at AC 50HZ
  220
• Rated control supply voltage Us at AC 60HZ
  220
• Supporting protocol for SERCOS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for EtherNet/IP
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFINET IO
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Supporting protocol for PROFIBUS
  FALSE
• Supporting protocol for TCP/IP
  FALSE
• Supporting protocol for CAN
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• Supporting protocol for DeviceNet
  FALSE
• Rail mounting possible
  FALSE
• Supporting protocol for Modbus
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Supporting protocol for LON
  FALSE
• Supporting protocol for SUCONET
  FALSE
• Release class
  EV011240
• With transformer
  FALSE
• Type of electrical connection for auxiliary- and control current circuit
  EV000415
• Type of motor starter
  EV004003
• Supporting protocol for other bus systems
  FALSE
• With fuse
  FALSE
• Number of command positions
  2
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as normally open contact
• Depth
  108
• Number of indicator lights
  1
• Ambient temperature, upper operating limit
  40
• With short-circuit release
  FALSE
• External reset possible
  TRUE
• Width
  78
• Temperature compensated overload protection
  TRUE
• Rated operation power at AC-3, 230 V, 3-phase
  1.5
• Rated power, 460 V, 60 Hz, 3-phase
  3
• Rated operation current Ie
  8
• Overload release current setting
  5.5
• Rated operation current at AC-3, 400 V
  8
