СКУ: SDD112469T
TV розетка и изход за данни, RJ45 CAT6 UTP, крем
-
Brand
Schneider Electric
-
Surface protection
EV006034
-
Surface finishing
EV006395
-
RAL-number (similar)
1013
-
Colour
EV000279
-
Connection type
EV000154
-
Number of RJ45 sockets
1
-
Number of Coax sockets IEC 60169-2
1

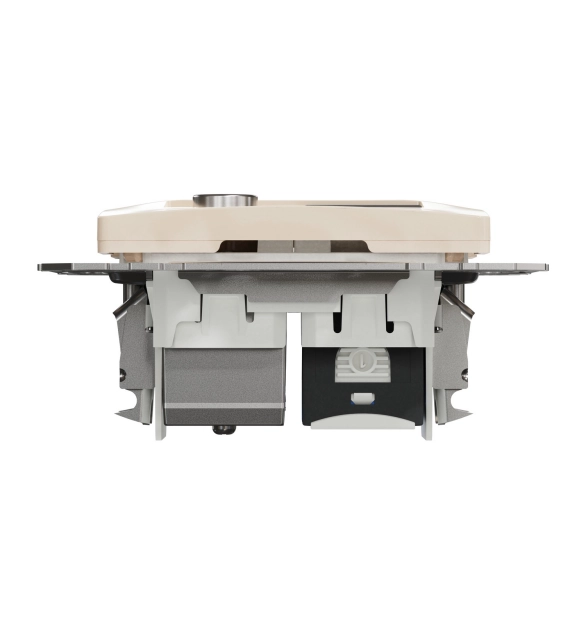

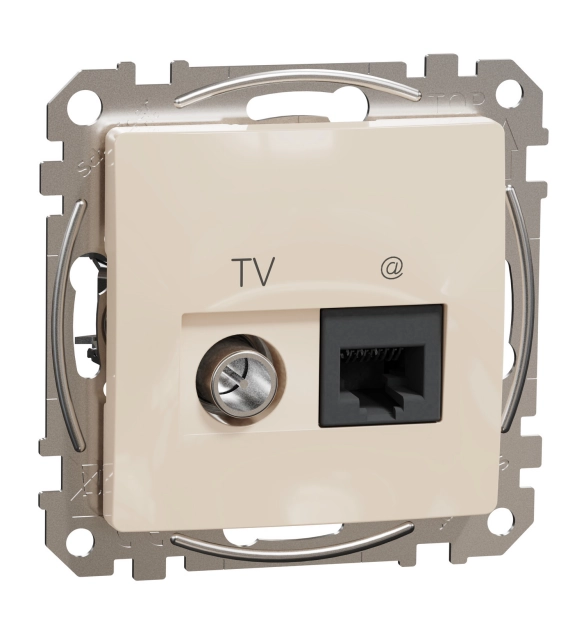

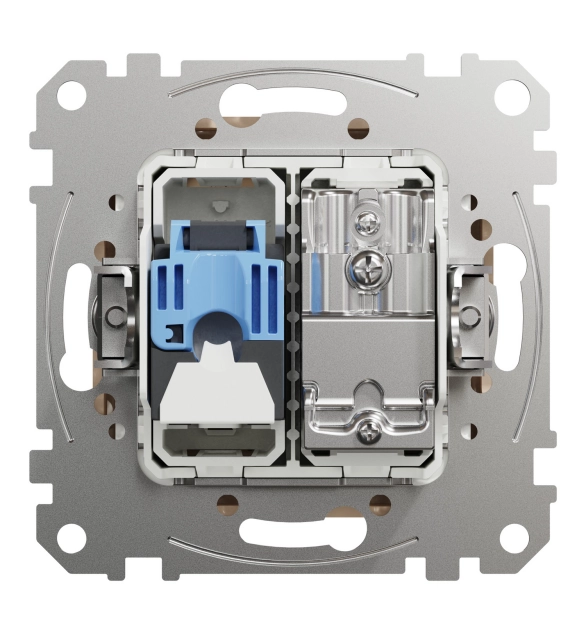

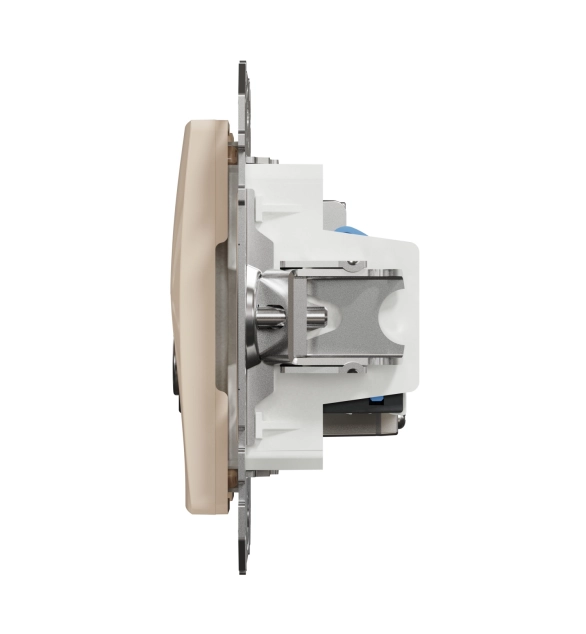

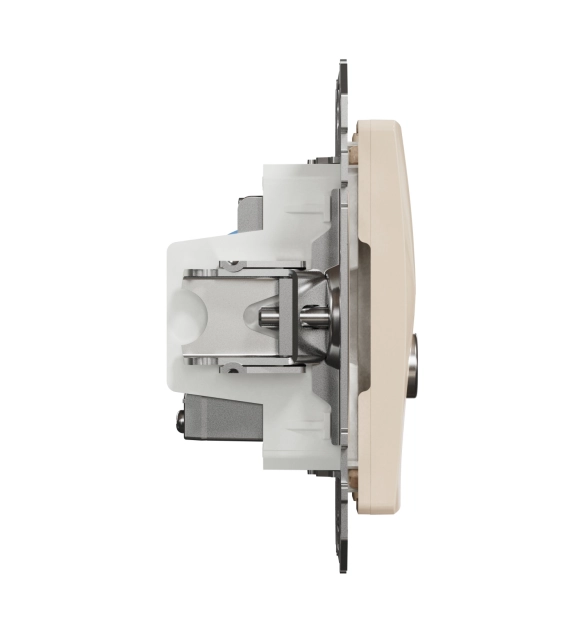

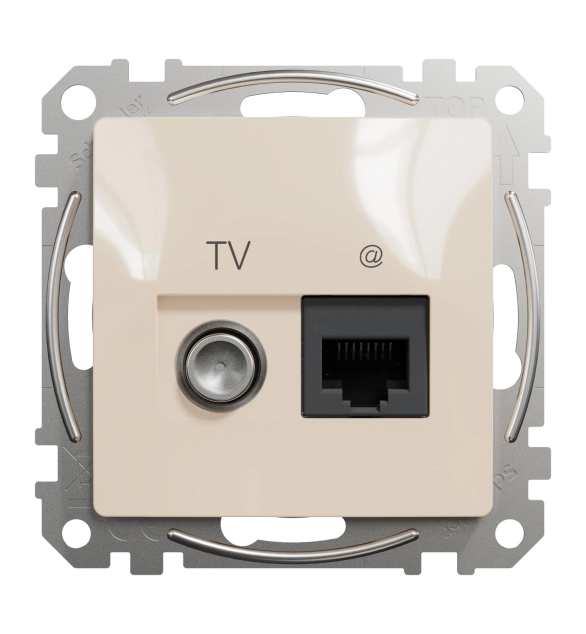

Sedna Design & Elements TV + data socket by Schneider Electric is a mechanism with fixing frame and cover plate for communication purposes. It is provided with Category 6 UTP(Unshielded Twisted Pair) RJ45 Data socket. It is provided with male individual TV socket and coaxial type of connector. This TV connector is having 4 decibels of Path attenuation. Its matching mounting box can be recessed into the surface of the wall with flush type. The dimensions of the product are (W) 73mm x (H) 73mm x (D) 37mm. It is made of thermoplastic ABS-UV stabilised. The color of the product is beige (RAL 1013) with glossy surface finish. The Ambient air temperature for operation is from -25°C up to +55°C. It reaches IP20 degree of protection. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the ISO 8877 standard.
