СКУ: 13189
Табло за открит монтаж 1х5M HT 46CM Kaedra IP65
-
Brand
Schneider Electric
-
Width in number of modular spacings
2
-
With mounting plate
FALSE
-
Type of cover
EV001012
-
Extension possible
FALSE
-
RAL-number
9003
-
Height
130
-
Degree of protection (IP)
EV006410
-
Transparent cover/door
FALSE
-
Cover model
EV009916
-
Signal passing door
FALSE
-
Colour
EV000202
-
Material housing
EV000139
-
Number of rows
1
-
DIN-rail
TRUE
-
Mounting method
EV000384
-
With lock
FALSE
-
EMC-version
FALSE
-
Earthing terminal block
FALSE
-
Neutral terminal block
FALSE
-
Internal depth
52
-
Width
44
-
Depth
57

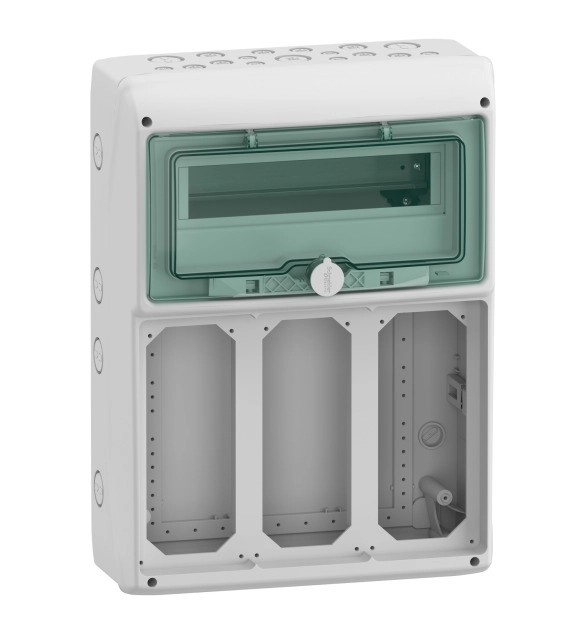

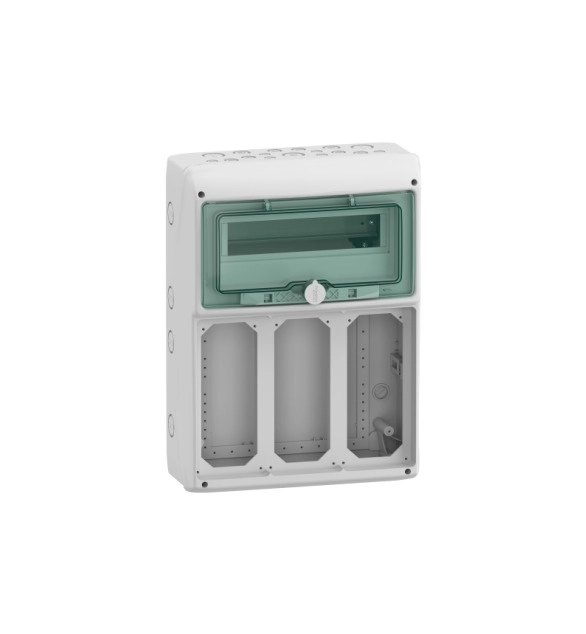

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for power outlet. It can accomodate all types of modular switchgear. There is a zone for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for new or renovated installation in residential. The cables can enter by the top side of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 2 plates for 65x85mm power outlets and 1 plate for push-button control. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 15W. The In rated current is up to 63A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 236mm x (H) 460mm x (D) 160mm. The product weight is 2kg. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is halogen free. The IK degree of protection is IK09. The operating temperature is -25-40 °C.
