СКУ: GV4PE50S

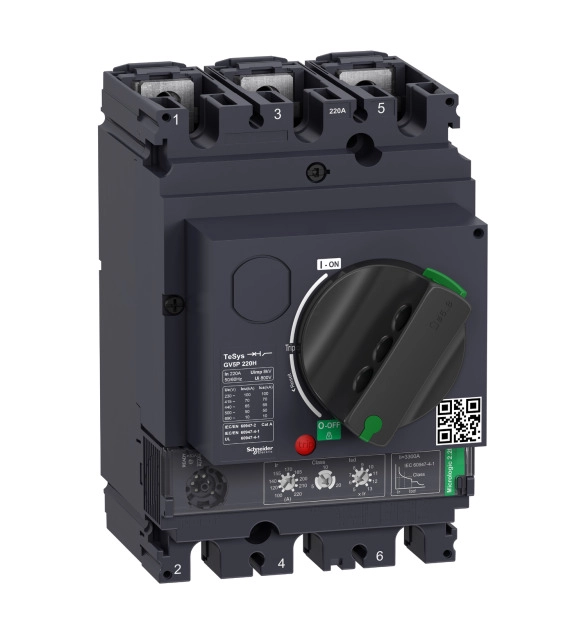

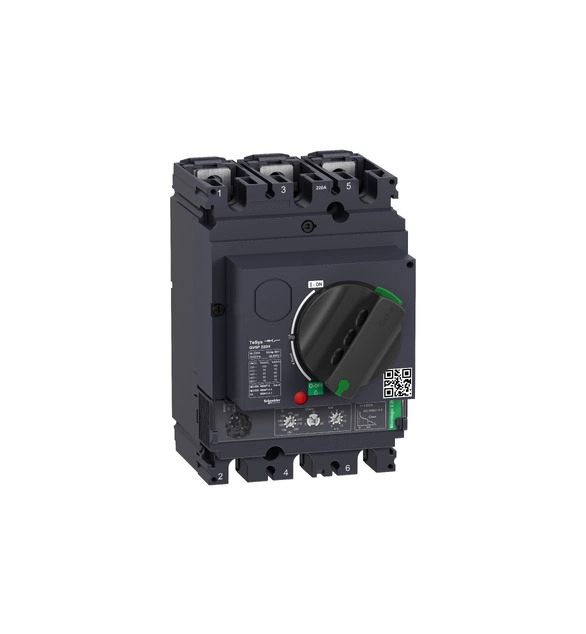

TeSys GV4 - термомагнитна моторна Защита - 50A 3P - с Everlink
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Type of control element
EV000092
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Width
105
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Height
161
-
Rated operating voltage
-
Depth
155
-
Rated short-circuit breaking capacity lcu at 400 V, AC
36
-
Rated operation power at AC-3, 400 V
132
-
Overload release current setting
100
-
Rated permanent current Iu
220
-
Rated operation power at AC-3, 230 V
90
-
Adjustment range undelayed short-circuit release
220
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for protection of 3-phase motors 11-22kW at 400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA at 400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 20-50A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
