СКУ: C25L4
Автоматичен прекъсвач 4P NSX250L без вкл. изключвателно устройство
-
Brand
Schneider Electric
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Initial value of the undelayed short-circuit release - setting range
6400
-
End value adjustment range undelayed short-circuit release
48000
-
Overload release current setting
252
-
Rated permanent current Iu
3200
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE

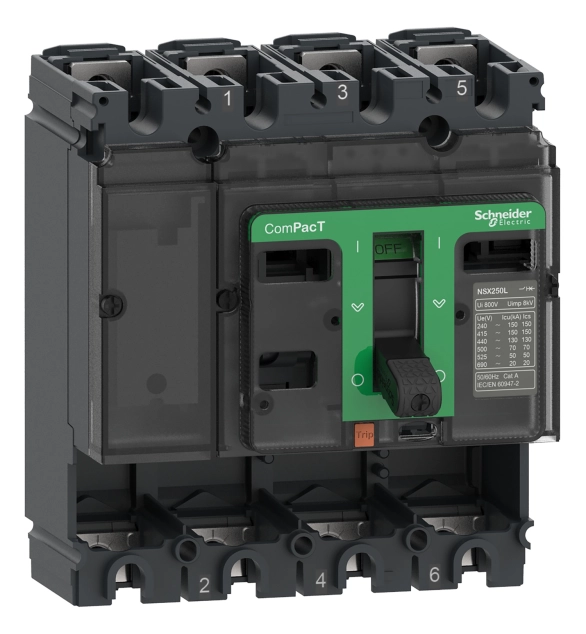

This is a 4 poles basic frame for ComPacT NSX250L. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately. The breaking capacity Icu is 150kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250L is part of Schneider Electric EcoStruxure Power architecture.
