СКУ: GV4L07N

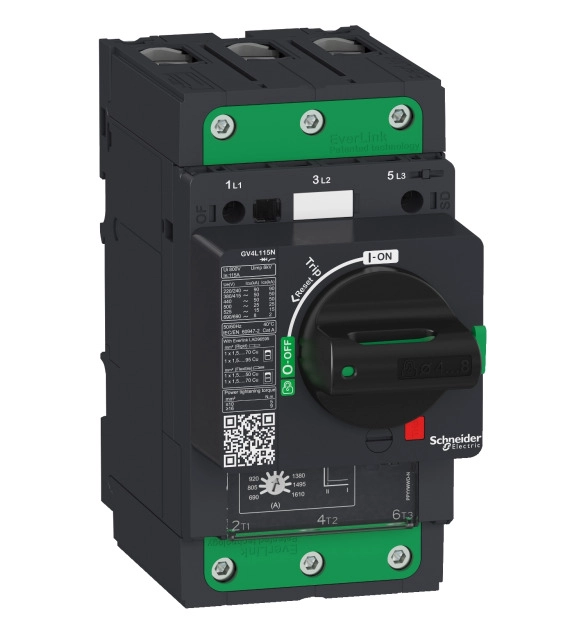

TeSys GV4 - магнитна моторна Защита - 7A 3P - с EverLink
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Type of control element
EV000092
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Rated operation power at AC-3, 400 V
1.5
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Rated operation power at AC-3, 230 V
0.75
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
Width
81
-
Depth
165
-
Phase failure sensitive
FALSE
-
Height
155
-
Rated permanent current Iu
3.5
-
Adjustment range undelayed short-circuit release
21
TeSys GV motor circuit breaker, 3 poles (3P), 2A/690V, for protection of 3-phase motors 0.25-0.75kW at 400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA at 400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 0.8-2A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
