Табло S3X 1200X1000X300 неръжд.316L | Spark & Co
  • 3D
|

СКУ: NSYS3X121030H

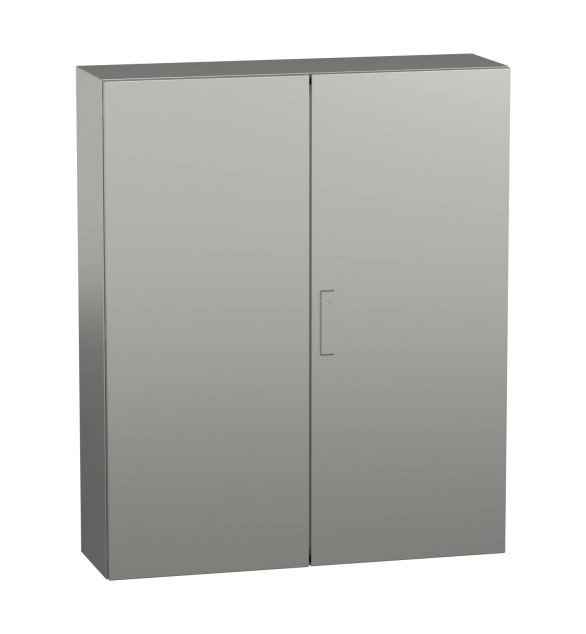

Табло S3X 1200X1000X300 неръжд.316L

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • RAL-number
    9003
  • Colour
    EV000202
  • EMC-version
    FALSE
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Width
    300
  • Height
    2000
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV008784
  • Depth
    500
  • Connectable
    TRUE
  • Number of locks
    1
  • Intermediate mounting
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
  • Max. permissible load of the enclosure according to IEC 62208
  • Max. permissible load of the door(s) according to IEC 62208

This S3DM is a wall-mounting modular distribution enclosure designed for installation of modular chassis DLM It is made of steel body and steel security glass door The enclosure has nominal dimensions of 1000mm height, 800mm width, and 150mm depth The doors are reversible up to 120° and secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas) The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL It is designed for easy accessibility from the front This compact enclosure is BV, DNV, GL, LR, c. UL certified.
