СКУ: 8751039000

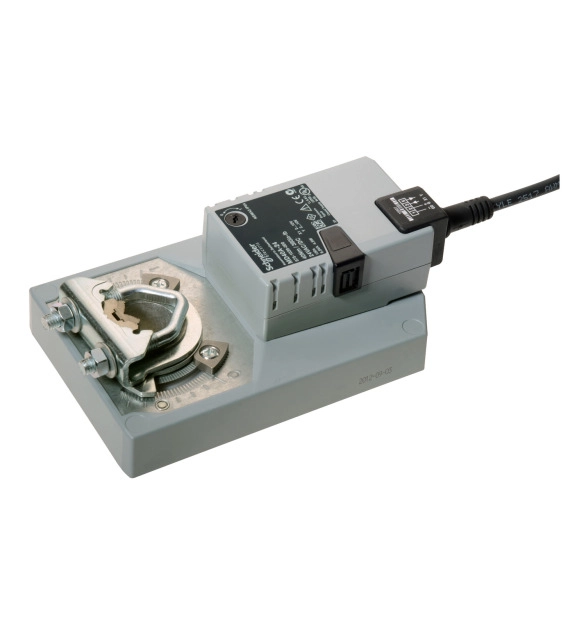

MD40A Damper Actuator, Modulating, 2-10 Vdc, Non-Spring Return, 24 Vac/dc, 1 m Cable, 40 Nm, IP54

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Material housing
    EV000154
  • Degree of protection (IP)
    EV006419
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Adjustable position feedback signal
    TRUE
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Return at zero supply voltage
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Suitable for valve
    TRUE
  • With safety function
    TRUE
  • Adjustable operating range
    TRUE
  • Automatic travel recognition
    FALSE
  • Allowable relative humidity
  • Type of safety function
    EV000154
  • Degree of protection (NEMA)
    EV000069
  • Deactivated when closed
    FALSE
  • End contacts
    EV000494
  • Principle of operation safety function
    EV000154
  • With top flange direct mount according to ISO 5211
    FALSE
  • With mechanical setting indicator
    TRUE
  • Auxiliary contacts
    TRUE
  • Height
    68
  • Width
    115
  • Connection to stop valve
    EV000494
  • Model
    EV010029
  • Length of connection cable
    1
  • Regulation type on/off
    TRUE
  • Ambient temperature
    -30
  • Operating time
    150
  • Auxiliary contacts optional
    TRUE
  • Control signal
    EV007983
  • Max. angle of rotation
    90
  • Energy consumption in operation
    1
  • Torque
    5
  • Max. electric power input
    2

The MD2A is a 2…10 V modulating damper actuators. It is designed for operating air control dampers in ventillation and air conditioning systems for building services installations. As an accessory, the modulating actuator have a fully adjustable auxiliary switch unit. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac/Vdc +/- 20%. Modulating control signal: 2…10 Vdc. Torque: 20 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 4 x .75 mm² (AW 18).
