СКУ: GS2FG3

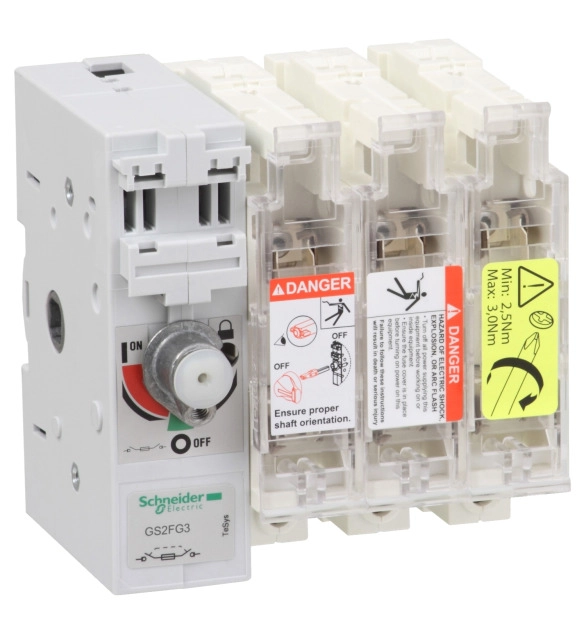

TeSys GS - мощн. разединител - 3 P - 50A - NFC 14 x 51 mm
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Version as main switch
TRUE
-
Suitable for front mounting
FALSE
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Rated permanent current Iu
50
-
Conditioned rated short-circuit current Iq
100
-
Suitable for fuses
EV010287
-
Max. rated operation voltage Ue AC
750
-
Rated operation power at AC-23, 400 V
25
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Rated short-time withstand current lcw
100
-
Position control element
EV004731
TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23. To be equipped with an external left-hand side mounting operating handle GS2AH (several models available). When the Product Is Used outside a control panel or for Voltage >=500Vac, screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately). Multi standards certified (IEC, Marine).
